HomeSeer

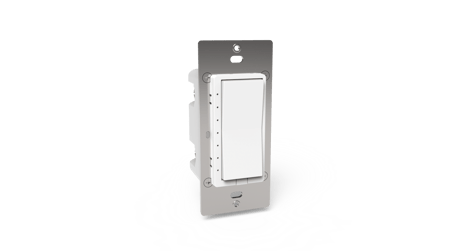

Smart In Wall Dimmer & Switch
HS-WX300-R2
Multilevel Switch DT
HW: 02 FW: 02.01
EFR32ZG23A
7.18.1
0x000C (12)
N/A
0x4447 (17479)
ZC14-22120183
2022-12-28 10:23:43
N/A
Enhanced 232 Slave
Always On Slave
HS-WX300 is a Z-Wave™ in-wall light switch that may be configured to operate as either a dimmer switch or an on/off switch.
3 - LED Light Mode
Set LED operation (in normal modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Bottom LED ON if load is OFF |
| 1 | 1 | Bottom LED OFF if load is OFF |
4 - Invert Buttons
Set paddle load orientationSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Top of Paddle turns load ON |
| 1 | 1 | Bottom of Paddle turns load ON |
5 - Lowest Dim Level
Set lowest dimming thresholdSize: 1 byte
Default: 1
Minimum: 1
Maximum: 14
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 14 | Possible values: 1-14 3-wire mode (1=16%, 14=25%) 2-wire mode (1=25%, 14=30%) |
6 - Enables/Disables Central Scene and multiple tap functions
Enables/Disables Central Scene and multiple tap functionsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Central Scene Enabled, controls load with delay. Enables Multi-tap and press and hold |
| 1 | 1 | Central Scene Disabled, controls load instantly. Disables multi-tap, central scene, press and hold |
11 - Set dimmer Ramp rate for remote control
Set dimmer Ramp rate for remote controlSize: 1 byte
Default: 3
Minimum: 0
Maximum: 90
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 90 | Possible values: 0-90 0=No delay (instant ON), 1=1 second |
12 - Set dimmer Ramp rate for local control
Set dimmer Ramp rate for local controlSize: 1 byte
Default: 3
Minimum: 0
Maximum: 90
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 90 | Possible values: 0-90 0=No delay (instant ON), 1=1 second |
13 - Sets the display mode of the LEDs
Sets the display mode of the LEDsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Normal mode (LEDs show load status) |
| 1 | 1 | Status mode (custom LED status) |
14 - Normal Mode LED
Set normal display mode LED colorSize: 1 byte
Default: 0
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 6 | Possible values: 0-6 0=White, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan |
21 - LED1 Status Color
Set the led1 color in status modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 7 | Possible values: 0-7 0=Off, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan, 7=White |
22 - LED2 Status Color
Set the led2 color in status modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 7 | Possible values: 0-7 0=Off, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan, 7=White |
23 - LED3 Status Color
Set the led3 color in status modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 7 | Possible values: 0-7 0=Off, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan, 7=White |
24 - LED4 Status Color
Set the led4 color in status modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 7 | Possible values: 0-7 0=Off, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan, 7=White |
25 - LED5 Status Color
Set the led5 color in status modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 7 | Possible values: 0-7 0=Off, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan, 7=White |
26 - LED6 Status Color
Set the led6 color in status modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 7 | Possible values: 0-7 0=Off, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan, 7=White |
27 - LED7 Status Color
Set the led7 color in status modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 7 | Possible values: 0-7 0=Off, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan, 7=White |
30 - LED Blink Frequency
Set the blink freq for LEDsSize: 1 byte
Default: 5
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No blink |
| 1 | 255 | 1=100ms ON then 100ms OFF |
31 - Enable LED Blink
Set LEDs to blink in Status modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Led 1 |
| 2 | 2 | Led 2 |
| 4 | 4 | Led 3 |
| 8 | 8 | Led 4 |
| 16 | 16 | Led 5 |
| 32 | 32 | Led 6 |
| 64 | 64 | Led 7 |
32 - No Neutral Mode
Wire mode / no neutral modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 3 wire mode (Neutral, Line, & Load) |
| 1 | 1 | 2 wire mode (Line & Load) |
33 - Startup LED Flash
Toggle power LED flashSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LEDs do not flash on startup |
| 1 | 1 | LEDs flash on startup to indicate switch or dimmer operation |
34 - Sets relative LED indicator brightness
Sets relative LED indicator brightnessSize: 1 byte
Default: 3
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 6 | 0=Lowest intensity 6=Highest intensity |
35 - Toggle Mode
Enable toggle modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Top paddle press turns load ON. Bottom paddle press turns load OFF. |
| 1 | 1 | Either paddle press turns load ON if OFF and OFF if ON. |
36 - Sets Default Dim Value when turned ON via paddle press
Sets Default Dim Value when turned ON via paddle pressSize: 1 byte
Default: 0
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Last dim level when switch was last turned off |
| 1 | 99 | percent |
37 - Sets Load Control via Paddle (Smart Bulb Feature)
Sets Load Control via Paddle (Smart Bulb Feature)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Load is controlled with paddle |
| 1 | 1 | Load is not controlled with paddle |
Follow this 2-step procedure to add (or remove) your new HomeSeer switch to (or from) your Z-Wave network: 1. Put your Z-Wave controller into inclusion (or exclusion) mode. Consult your controller’s manual if you’re unsure how to do this. 2. In rapid succession, tap the bottom paddle 2 times, then press & hold the bottom paddle for 3 seconds (tap-tap-press & hold). This will initiate the inclusion (or exclusion) process. Note: The switch will default to dimmer mode after Z-Wave exclusion
Follow this 2-step procedure to add (or remove) your new HomeSeer switch to (or from) your Z-Wave network: 1. Put your Z-Wave controller into inclusion (or exclusion) mode. Consult your controller’s manual if you’re unsure how to do this. 2. In rapid succession, tap the bottom paddle 2 times, then press & hold the bottom paddle for 3 seconds (tap-tap-press & hold). This will initiate the inclusion (or exclusion) process. Note: The switch will default to dimmer mode after Z-Wave exclusion
To be used only in the event that the network primary controller is lost or otherwise inoperable. In rapid succession, tap the top paddle 3 times, then tap the bottom paddle 3 times. If all LEDs flash white 5 times, factory reset was successful. If not, repeat this procedure. Note: As this must be done very quickly, we recommend using 2 fingers for this operation; one on each paddle! Note: The switch will default to 3-wire mode and dimmer mode after factory reset.
Changing Wire Mode HS-WX300 may be installed with a neutral wire (3-wire mode) or without a neutral wire (2-wire mode). Selecting the correct wire mode will yield the best results, especially if the switch is configured as a dimmer. By default, 3-wire mode is enabled. To change the wire mode (at the switch): 1. Turn the power off 2. In rapid succession, tap the top paddle 2 times, then press & hold the top paddle for 3 seconds (tap-tap-press & hold) 3. Observe the behavior of the LEDs If the bottom 3 LEDs flash white 3 times, HS-WX300 is configured for 3-wire mode If the bottom 2 LEDs flash white 2 times, HS-WX300 is configured for 2-wire mode Note: Wire mode may also be changed by the hub using Z-Wave parameter 32. See the Z-Wave Parameters section at the end of this user guide.
*QR Code is located on the HS-WX300 metal yoke under the switch paddle.
