Enerwave

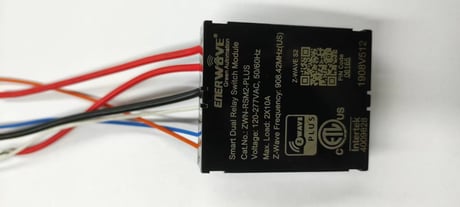

Smart Dual Relay Switch Module
ZWN-RSM2-PLUS
Binary Switch DT
HW: 01 FW: 01.12
ZGM130S037HGN2 / ZGM130S037HGN1
7.18.3
0x011A (282)
N/A
0x0004 (4)
ZC14-23020199
2023-02-16 08:39:46
N/A
Enhanced End Node 232
Always On Slave
1. Z-Wave Plus™ Dual Relay is the most advanced and customizable module you can add to your existing appliances and lights. 2. Remotely turn your appliances (lights, fans) on and off from an internet-connected smartphone, tablet, or computer. 3. Program Z-Wave™ relay switch in scenes, groups, and associations. Dynamic scheduling and control from anywhere. Z-Wave™ hub required
5 - Power on status
Power on statusSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
19 - Child lockout enable
Child lockout enableSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
20 - Delayed off time
Delayed off timeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 240
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
1. Power the relay up 2. Tap the plus icon in the home screen of the SmartThings app 3. Tap Device 4. Tap “Scan QR code.” Scan the QR code printed on the inside of the cover of the realy 5. Input the 5-digit pin 6. On the SmartThings app, select the hub and room you’d like the device added to and click Next 7. When the app says “Get your device ready to connect”, press and released the program button 3 times on the back of the relay 8. A few seconds later, the app will display a new device on the screen 9. Click Done
1. Tap on your hub in the home page of the app or find it under Devices in the SmartThings app 2. Tap the three dots in the top right 3. Tap Z-Wave Utilities 4. Tap Z-Wave Exclusion 5. While the app is searching for a device, press and released the program button 3 times on the back of the relay 6. The app will indicate when the device is successfully removed.
If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the relay, press and hold the program button for 10 seconds. The device will send reset locally notification to controller and the connected load will turn on/off 5 times to confirm successful reset.
The SmartStart security PIN is located on the back of the relay, next to the Z-Wave Plus logo
| Type | Value(s) |
|---|
