Resideo
PROA7-EAE Security System
PROA7-EAE
Central Controller
HW: 1 FW: 6.06:02.81:02.00
ZM5202
6.81.05
0x041B (1051)
0x0001 (1)
0x0001 (1)
ZC10-23037124
2023-03-16 11:58:03.642429
N/A
Bridge Controller
Central Static Controller
The PROA7-EAE is a 7" self-contained Touchscreen Partitioned Security & Automation System.
The PROA7-EAE is a self-contained, rechargeable wireless Control Panel/Communicator that features easy installation and usage. A built-in speaker provides voice annunciation of system status along with voice descriptors of each zone. Internal modules allow the Control Panel to communicate with the Central Station. An internal Z-Wave™ module allows the Control Panel to support Home Automation functions.

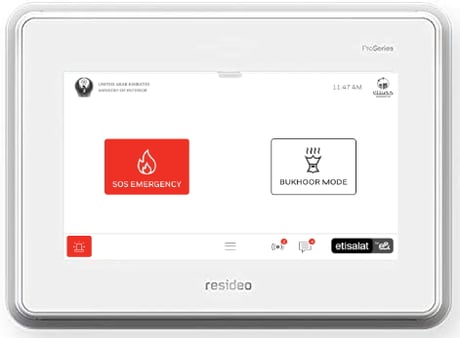

Product Image
Controller replication (Copy) is achieved through Inclusion and Set Learn Mode. Entering learn mode while in a network will trigger a replication if the primary controller is in add node mode. So, replication and Learn Mode are the same and you just need to do Learn Mode here. 1. Prepare two mains powered z-wave DUTs and cloud API web shows as below #2 DUT do factory reset first, 2. Click “Inclusion Mode” on the 1# 3. Click “Enter Learn Mode” on the 2#
1. Prepare two mains powered z-wave DUTs and navigate to system UI as below, click button Click “Setting”
If the device is an S2 security device, the panel will ask for the DSK (Device Specific Key) pin. Enter the PIN from the device and allow several minutes for the device to complete the Secure enrollment process.
Controller replication (Copy) is achieved through Inclusion and Set Learn Mode. Entering learn mode while in a network will trigger a replication if the primary controller is in add node mode. So, replication and Learn Mode are the same and you just need to do Learn Mode here. 1. Prepare two mains powered z-wave DUTs and cloud API web shows as below #2 DUT do factory reset first, 2. Click “Inclusion Mode” on the 1# 3. Click “Enter Learn Mode” on the 2#
Inclusion S0 device: For inclusion one z-wave device is in add mode and the other one is in learn mode. 1. Include a Z-Wave device (Door lock, Switch, Dimmer...), click button 2. Then pop up the inclusion mode window, display searching for Z-Wave Device 3. Press the button on the device which you want to include, wait for the inclusion to end, display device information, click done 4. View Z-Wave device list, the newly registered device should show Inclusion S2 device: 1. Include a Z-Wave S2 device, click button 2. Press the button on the device which you want to include, wait for a dialog and input first 5 digits DSK, click Ok 3. wait for the inclusion to end, display device information, click done 4. View Z-Wave device list, the newly registered device should show
For exclusion one z-wave device is in removing mode and the other one is in learn mode. 1. Exclude a Z-Wave device (Door lock, Switch, Dimmer...), click button 2. Then pop up the exclusion mode window, display deleting for Z-Wave Device 3. Press the button on the device which you want to exclude, wait for the exclusion to end, display device information, click done
| Sensor type |
|---|
| General Purpose |
