EVA LOGIK

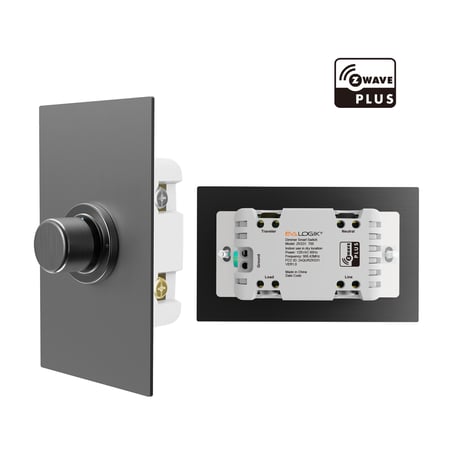

Z-Wave Knob Dimmer Switch
ZKS31
Multilevel Switch DT
HW: 01 FW: 01.03
ZGM130S037HGN2 / ZGM130S037HGN1
7.18.3
0x0312 (786)
N/A
0x7000 (28672)
ZC14-23030206
2023-03-13 11:46:48
N/A
Enhanced End Node 232
Always On Slave
The Smart Dimmer can be used to turn any outlet into a smart outlet to turn lamps On, Off, or control dimming of any lamps with dimmable light bulbs. Each Z-Wave ™ device also serves as a repeater in the Z-Wave network, extending and improving the mesh network in the installed location. The Smart Dimmer is a Z-Wave Plus ™ certified device and includes S2 security and SmartStart. You can now add this device securely and with ease using QR code on the box or device.
1 - Led Function
Led behavior for outputSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Inverse: Indicator on when output off and off when output on |
| 1 | 1 | Synchronize: Same as output |
| 2 | 2 | Always Off |
| 3 | 3 | Always On |
2 - Led Color
Set led's colorSize: 1 byte
Default: 0
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Blue |
| 1 | 1 | Green |
| 2 | 2 | Red |
| 3 | 3 | White |
| 4 | 4 | Yellow |
| 5 | 5 | Cyan |
| 6 | 6 | Magenta |
3 - Led Brightness
Set led's brightnessSize: 1 byte
Default: 1
Minimum: 10
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 100 | percent |
4 - Knob Step
Step value when rotate knobSize: 1 byte
Default: 1
Minimum: 1
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | Rotate once to adjust 1% ~10% |
5 - Up Press Value
Brightness when press upSize: 1 byte
Default: 100
Minimum: 0
Maximum: 101
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turn off |
| 1 | 99 | Custom Brightness |
| 100 | 100 | Maximum Brightness |
| 101 | 101 | Minimum Brightness |
6 - Down Press Value
Brightness when press downSize: 1 byte
Default: 20
Minimum: 0
Maximum: 101
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turn off |
| 1 | 99 | Custom Brightness |
| 100 | 100 | Maximum Brightness |
| 101 | 101 | Minimum Brightness |
7 - Left Press Value
Brightness when press leftSize: 1 byte
Default: 0
Minimum: 0
Maximum: 101
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turn off |
| 1 | 99 | Custom Brightness |
| 100 | 100 | Maximum Brightness |
| 101 | 101 | Minimum Brightness |
8 - Right Press Value
Brightness when press rightSize: 1 byte
Default: 255
Minimum: 0
Maximum: 101
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turn off |
| 1 | 99 | Custom Brightness |
| 100 | 100 | Maximum Brightness |
| 101 | 101 | Minimum Brightness |
9 - Center Behavior
Behavior when press the knobSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable scene |
| 1 | 1 | Enable scene |
10 - Up Behavior
Behavior when push knob upSize: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Only enable scene |
| 2 | 2 | Only enable #PARAM 5 |
| 3 | 3 | Enable both |
11 - Down Behavior
Behavior when push knob downSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Only enable scene |
| 2 | 2 | Only enable #PARAM 6 |
| 3 | 3 | Enable both |
12 - Left Behavior
Behavior when push knob leftSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Only enable scene |
| 2 | 2 | Only enable #PARAM 7 |
| 3 | 3 | Enable both |
13 - Right Behavior
Behavior when push knob rightSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Only enable scene |
| 2 | 2 | Only enable #PARAM 8 |
| 3 | 3 | Enable both |
14 - Auto Turn Off Timer
Minutes automatically turn off once turned onSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 65535 | minutes |
15 - Auto Turn On Timer
Minutes automatically turn on once turned offSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 65535 | minutes |
16 - Restore State
State restored when power failureSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Always Off |
| 1 | 1 | Always On |
| 2 | 2 | Memory state |
17 - Level Min
Minimum brightnessSize: 1 byte
Default: 0
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 99 | percent |
18 - Level Max
Maximum brightnessSize: 1 byte
Default: 0
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 99 | percent |
19 - External Switch Type
External switch typeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Toggle switch |
| 1 | 1 | Momentary button |
20 - Rate For Physical On
Rate when turn on manuallySize: 1 byte
Default: 1
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly |
| 1 | 99 | second |
21 - Rate For Physical Off
Rate when turn off manuallySize: 1 byte
Default: 2
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly |
| 1 | 99 | second |
22 - Rate For Hub On
Rate when turn on by HUBSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly |
| 1 | 254 | second |
| 255 | 255 | Same as #PARAM 20 |
23 - Rate For Hub Off
Rate when turn off by HUBSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly |
| 1 | 254 | second |
| 255 | 255 | Same as #PARAM 20 |
24 - Single Tap behavior
Single TAP behavior when turn on the deviceSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turn on to custom brightness determined by PARA#25 |
| 1 | 1 | Always turn on to 100% |
| 2 | 2 | Always turn on to maximum brightness determined by PARA#18 |
| 3 | 3 | Turn on to last brightness before power off. |
25 - Custom brightness
Custom brightness for TAP behaviorSize: 1 byte
Default: 1
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | percent |
Network Wide Inclusion To A Z-Wave™ Network Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. When prompted by your primary controller, click the z-wave button Three times .
Network Wide Inclusion To A Z-Wave™ Network Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. When prompted by your primary controller, click the z-wave button Three times . REMOVE/Exclusion to a Z-Wave Network Same operation.
Factory Reset : Press the knob(center) twice and hold for 10 seconds (Tap -> Tap -> Press and hold for 10 seconds) to reset the device. Indicate: RED led will flashes, and then the GREEN led be solid for 2 seconds. ZKS31 User Manual
The QR code are stocked to the side of the case, DSK is included in the QR code. The DSK code can be found on the DSK label which is attached on the packaging box. The QR code are stocked to the side of the case, DSK is included in the QR code. The DSK code can be found on the DSK label which is attached on the packaging box.
| Type | Value(s) |
|---|
