URC
Dimmer/Switch
LT-3300
Multilevel Switch DT
HW: 01 FW: 01.00
ZGM230SA
7.18.1
0x0445 (1093)
N/A
0x0003 (3)
ZC14-23030210
2023-03-23 08:23:46
N/A
Enhanced End Node 232
Always On Slave

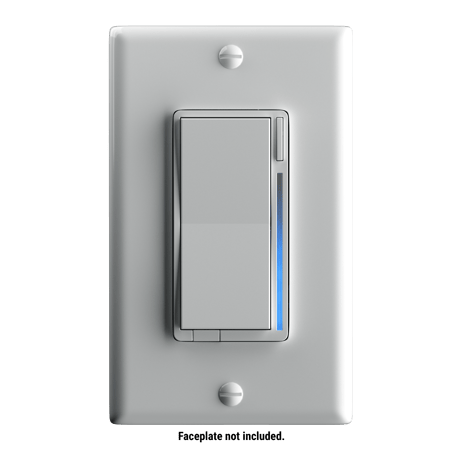

Introducing the first Z-Wave™ 800 Series Light Switch with Long Range, Multi-Tap Scene Control and LED Notifications powered by URC.
1 - Diming Speed Up Remote
Interval of dimming: 0-100 in ms(0-10000 ms), 101-160 in seconds(1-59 seconds), 161-254 in minutes (1-93 minutes)Size: 1 byte
Default: 25
Minimum: 0
Maximum: 254
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
2 - Diming Speed Up From Switch
0-254 is the same as P1, when 255 will Keep in sync with P1Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
3 - Ramp Rate On Remote
0-254 is the same as P1, when 255 will Keep in sync with P1Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - Ramp Rate On From Switch
0-254 is the same as P1, when 255 will Keep in sync with P2Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
5 - Dimming Speed Down Remote
0-254 is the same as P1, when 255 will Keep in sync with P1Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
6 - Dimming Speed Down From Switch
0-254 is the same as P1, when 255 will Keep in sync with P2Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
7 - Ramp Rate Off Remote
0-254 is the same as P1, when 255 will Keep in sync with P3Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
8 - Ramp Rate Off From Switch
0-254 is the same as P1, when 255 will Keep in sync with P4Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
9 - Minimun Level
Minimun Level will dim toSize: 1 byte
Default: 1
Minimum: 1
Maximum: 54
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
10 - Maximun Level
Maximun Level will dim toSize: 1 byte
Default: 99
Minimum: 55
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
11 - Invert Switch
Invert Switch and led stripSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
12 - Auto Off Timer
Auto Turn Off after x secondsSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
13 - Default Level Local
Default dim level for the switch ON by buttonSize: 1 byte
Default: 0
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
14 - Default Level Z-Wave
Default dim level for the switch ON by Z-WaveSize: 1 byte
Default: 0
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
15 - State After Power Restored
State After Power RestoredSize: 1 byte
Default: 100
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
17 - LED Bar Timeout
LED Bar TimeoutSize: 1 byte
Default: 11
Minimum: 0
Maximum: 11
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
18 - Active Power Reports
Active Power report when it change x %Size: 1 byte
Default: 10
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
19 - Meter Report Time
Time period between consecutive power & energy reports being sent x secondsSize: 2 bytes
Default: 3600
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
20 - Energy Report
Energy ReportSize: 2 bytes
Default: 10
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
21 - Power Type
0-NonNeutral, 1-NeutralSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
22 - Switch Type
0-Single, 1-Dumb, 2-Aux, 3-Single full waveSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
50 - Button Delay Time
Button Delay TimeSize: 1 byte
Default: 5
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
52 - Use Smart Bulb
Use Smart BulbSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
53 - Double Tap Up to Max
Double Tap Up to MaxSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
54 - Double Tap Down to Min
Double Tap Down to MinSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
59 - Association Behavior
Association BehaviorSize: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
64 - LED1 Effect
LED1 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
69 - LED2 Effect
LED2 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
74 - LED3 Effect
LED3 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
79 - LED4 Effect
LED4 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
84 - LED5 Effect
LED5 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
89 - LED6 Effect
LED6 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
94 - LED7 Effect
LED7 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
95 - LED Strip Color(On)
LED Strip Color(On)Size: 1 byte
Default: 170
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
96 - LED Strip Color(Off)
LED Strip Color(Off)Size: 1 byte
Default: 170
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
97 - LED Strip Intensity(On)
LED Strip Intensity(On)Size: 1 byte
Default: 33
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
98 - LED Strip Intensity(Off)
LED Strip Intensity(Off)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
99 - LED Strip Effect
LED Strip EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
123 - Aux Switch Scence
Aux Switch ScenceSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
158 - OnOff Dimmer Mode
0-Dimmer, 1-OnOffSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
159 - OnlyOneLed Mode
OnlyOneLed ModeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
160 - Firmware progress LED
Firmware progress LEDSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
161 - Relay Click
Relay ClickSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
162 - Clear Notification
Press 2x config clear notificationSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
The switch will automatically start the inclusion process when power is restored. To indicate the switch is in inclusion mode, the LED Bar will pulse blue. If the LED Bar is not pulsing, tap the config button 3x rapidly or pull the air-gap out and push it back in. Start the Z-Wave inclusion process on your hub at any time. If successful, the LED Bar will flash green and if unsuccessful, it will flash red.
If the switch is unsuccessful during inclusion, you can exclude the switch by putting your gateway in exclusion mode and pressing the config button three times. The LED Bar will pulse blue and then flash green if successful or red if not.
To factory reset your device, hold down on the top part of the paddle as well as the Configuration / Favorites Button for 20 seconds until the LED Bar turns red and let go of both. The switch should blink red a few times indicating it has been factory reset. You may also use a certified Z-Wave controller to remove the device from your network to factory default. Only use these procedures in the event that the primary controller is missing or otherwise inoperable.
This switch has animated notifications that can alert you of certain events (garage door left open, doors unlocked, etc), multi-tap scene control from both the switch and, if in a multi-way setting, from an add-on/auxiliary switch. It also has our invention, Smart Bulb Mode, which will lock power to your smart bulb and digitally turn on/off/dim your smart bulb. Please note, while these features are on the switch, they must also be supported by the hub/gateway.
The DSK information required for some inclusion methods can be found either on the product (QR Code located at the bottom front-left of the switch), on the back of the box (QR Code located at the bottom right).
