Control4
Core-3
C4-CORE3
Generic Controller DT
HW: 01 FW: 07.18:01.02
ZGM130S037HGN2 / ZGM130S037HGN1
7.18.2
0x023F (575)
N/A
0x0000 (0)
ZC14-23050240
2023-05-11 14:06:52
N/A
Bridge Controller
Central Static Controller

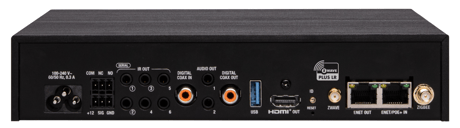

CORE is a next-generation Controller, the processor for personalized automation experiences, the communication server for Intercom Anywhere, the power behind Ryff’s high-resolution audio, the OvrC Hub for network monitoring and management, and the engine for our Intelligent Platform. CORE is the foundation for any next-gen deployment.
Reset Defaults clears the Home ID on the Z-Wave controller and abandons any nodes on the existing network. Any Z-Wave devices previously joined to the network must be removed before they can join the new network. See “Removing Z-Wave devices.” Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
You can use the Z-Wave SmartStart agent to add Z-Wave devices to your Z-Wave S2 network on a Control4 CORE controller without having to send the identify sequence from the device. To add Z-Wave device using the SmartSmart agent: 1) In Agents, select Z-Wave SmartStart 2) Enter the DSK of the Z-Wave device. The device must support Z-Wave SmartStart protocols
