JascoPro Series

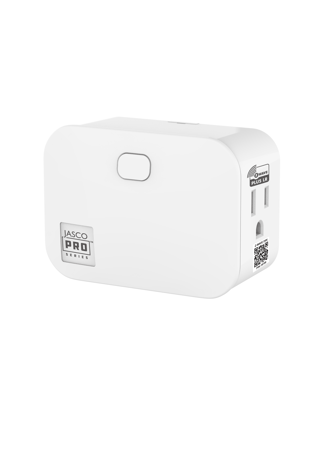

Plug-in 2 Outlet Switch, White, 1 outlet controlled 1 passthrough, 800S
76724/ZWN4108
Binary Switch DT
HW: 01 FW: 01.00
EFR32ZG23A
7.19.1
0x0063 (99)
N/A
0x5052 (20562)
ZC14-23080324
2023-08-31 11:15:00
N/A
Enhanced End Node 232
Always On End Node
This is the latest 800S Long Range product.

View configuration parameters (4)
3 - Reaction of led
Change the reaction of the indicator.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unlit |
| 1 | 1 | ON when the load is ON. |
| 2 | 2 | OFF when the load is ON |
| 3 | 3 | Blink when the load is ON |
41 - Indicator brightness
Setting indicator's brightness.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | High Brightness |
| 1 | 1 | Medium Brightness |
| 2 | 2 | Low Brightness |
42 - Restore status
Restore status after power failure.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Default ON |
| 1 | 1 | Default OFF |
| 2 | 2 | Restore to last status |
84 - Reset factory
Set 1 to reset factory defaultSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No effect |
| 1 | 2 | Factory reset |
Operating instructions (4)
The device support two methods of inclusion, When using a Z-Wave Plus™ certified controller choose Network Wide Inclusion or SmartStart. TAP the button once times to ADD/INCLUDE the device. Network Wide Inclusion To A Z-Wave™ Network TAP the button once times to REMOVE/EXCLUDE the device Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. When prompted by your primary controller, click the Z-Wave button one times .
The device support two methods of inclusion, When using a Z-Wave Plus™ certified controller choose Network Wide Inclusion or SmartStart. TAP the button once times to ADD/INCLUDE the device. Network Wide Inclusion To A Z-Wave™ Network TAP the button once times to REMOVE/EXCLUDE the device Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. When prompted by your primary controller, click the Z-Wave button one times .
2. Factory Reset:Remove the switch from power. Press and hold the manual button, plug the switch in and continue holding the manual button for 3 seconds. Note: Please use this procedure only when the network primary controller is missing or otherwise inoperable.
The device is compatible with SmartStart. SmartStart enabled products can be added into a Z-Wave™ network by scanning the Z-Wave QR Code found on the top of the outlet or the back of the box with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on and in the network vicinity.
Document (1)
| Type | Name | |
|---|---|---|
| Unknown | ZWN4108-1UserManual.pdf |
