Zooz

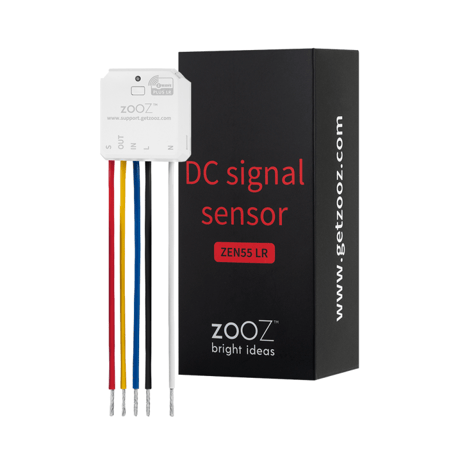

DC Signal Sensor
ZEN55 LR
Notification Sensor DT
HW: 01 FW: 01.11
EFR32ZG23A
7.18.3
0x027A (634)
N/A
0x0004 (4)
ZC14-23090328
2023-09-08 11:00:30
N/A
Enhanced End Node 232
Always On Slave
Use the DC Signal Sensor as a smart bridge between analog smoke and CO detectors and your Z-Wave™ hub.
1 - Led indicator status
Led indicator statusSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
2 - Alarm trigger Relay Control
Alarm trigger Relay ControlSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
3 - Auto turn-off timer
Auto turn-off timerSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - Auto turn-on timer
Auto turn-on timerSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
5 - Restores state after power failure
Restores state after power failureSize: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
6 - Smoke alarm group control
Smoke alarm group controlSize: 1 byte
Default: 0
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
7 - CO alarm group control
CO alarm group controlSize: 1 byte
Default: 0
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
8 - Enable or Disable Z-Wave Control
Enable or Disable Z-Wave ControlSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
1. Initiate inclusion (pairing) in the app (or web interface). 2. TAP THE Z-WAVE BUTTON 3 TIMES QUICKLY if using traditional Z-Wave inclusion. 3. The LED indicator will blink blue to signal communication and turn green for 2 seconds if inclusion is successful or turn red for 2 seconds if the pairing attempt fails.
1. Bring your Z-Wave gateway (hub) close to the switch if possible 2. Put the Z-Wave hub into exclusion mode (not sure how to do that? [email protected]) 3. Tap the Z-Wave button 3 times quickly (the LED indicator will start blinking blue) 4. Your hub will confirm exclusion, the LED indicator on the switch will turn green for 2 seconds, and the device will disappear from your controller''s device list
If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the ZEN55, click the Z-Wave™ button once and immediately after, press and hold it down for 15 seconds. The LED indicator will flash during the process and turn red for 3 seconds to confirm successful reset. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.
Page 2 under Z-Wave Control: The SmartStart security PIN is located on the back of the device, next to the ETL logo.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Smoke Alarm |
|
| CO Alarm |
|
