ZOOZ

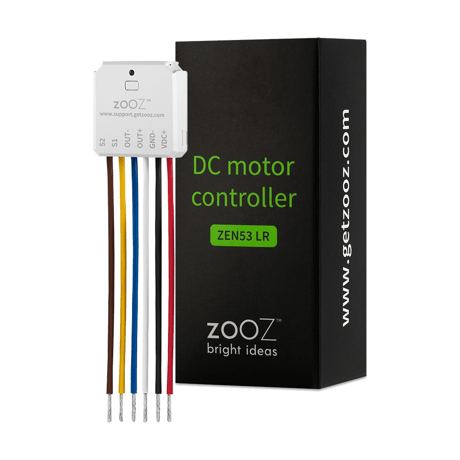

DC Motor Controller
ZEN53 LR
Window Covering DT
HW: 01 FW: 01.10
ZGM130S037HGN2 / ZGM130S037HGN1
7.16.3
0x027A (634)
N/A
0x0904 (2308)
ZC14-23090329
2023-09-11 10:13:20
N/A
Enhanced End Node 232
Always On Slave
Manual or Z-Wave™ control of DC motors (reversed polarity).
1 - Restores state after power failure
Restores state after power failureSize: 1 byte
Default: 100
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
2 - Led indicator load status
Led indicator load statusSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
3 - Motor moving time(Shutter mode)
Motor moving time(Shutter mode)Size: 2 bytes
Default: 6000
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - Blade Turn Time (Venetian mode)
Blade Turn Time (Venetian mode)Size: 2 bytes
Default: 1000
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
5 - Moving time Calibration
Moving time CalibrationSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
6 - Curtain working mode
Curtain working modeSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
7 - External Switch control Way
External Switch control WaySize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
8 - Enable External Switch Pair
Enable External Switch PairSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
9 - Inverts the orientation of Motor
Inverts the orientation of MotorSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
10 - Auto turn-on timer
Auto turn-on timerSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
11 - Auto turn-off timer
Auto turn-off timerSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
12 - Auto turn-on/off timer units
Auto turn-on/off timer unitsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
13 - Enable or Disable Output control
Enable or Disable Output controlSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
14 - External switch type for S1
External switch type for S1Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
15 - External switch type for S2
External switch type for S2Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
16 - Association Reports
Association ReportsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
17 - Set repositioning begins
Set repositioning beginsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
18 - Enable stop signal
Enable stop signalSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
1. ADD DEVICE to your hub: Initiate inclusion (pairing) in the app (or web interface). Check Long Range if using. Not sure how? Scan one of the QR codes below for step-by-step instructions or get in touch: www.support.getzooz.com 2. Finalize inclusion at the device. Tap the Z-Wave™ button 3 times quickly if using traditional Z-Wave™ inclusion. The LED indicator will blink green to signal communication and turn green for 2 seconds if inclusion is successful or turn red for 2 seconds if the pairing attempt fails.
1. Bring your Z-Wave™ hub close to the device if possible 2. Put the Z-Wave hub into exclusion mode (not sure how to do that? [email protected]) 3. Click the Z-Wave button on the relay 3 times quickly (the LED indicator will start blinking green) 4. Your hub will confirm exclusion, the LED indicator on the device will turn green for 2 seconds, and the ZEN53 will disappear from your controller''s device list.
If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the ZEN53, click the Z-Wave™ button once, and immediately after, press and hold it down for 15 seconds. The LED indicator will flash red during the process and turn red for 3 seconds to confirm a successful reset.
The SmartStart QRCode is located on the back of the relay, next to the Z-Wave Plus™ logo.
| Type | Value(s) |
|---|
