Enbrighten

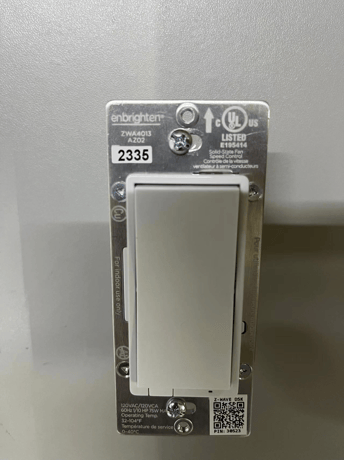

Enbrighten Z-Wave In-Wall Smart Fan Control,White and Light Almond Paddles, 700S
58446/ZWA4013
Multilevel Switch DT
HW: 01 FW: 01.06
ZGM130S037HGN2 / ZGM130S037HGN1
7.18.1
0x0063 (99)
N/A
0x4944 (18756)
ZC14-23090332
2023-09-14 15:36:20
N/A
Enhanced End Node 232
Always On Slave
Experience the latest generation of Z-Wave™ smart fan controls for in-wall configurations with paddle-style switches to accommodate any home.
3 - LED Light Mode
Set the LED Light ModeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - Invert Switch
Reverse the default ON/OFF Paddle switch settingSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
5 - Select 3-Way Type
Configure between standard 3-Way Switch or Add-On Switch is being usedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
19 - Alternate Exclusion
Alternative way to perform ExclusionSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
34 - LED Light Color
Set the LED Light ColorSize: 1 byte
Default: 5
Minimum: 1
Maximum: 8
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
35 - LED Light Intensity
Set the LED Light IntensitySize: 1 byte
Default: 4
Minimum: 1
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
36 - Guidelight Mode Intensity
Set the Guidelight Mode IntensitySize: 1 byte
Default: 4
Minimum: 1
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
39 - Power up status
Fan status when power upSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
40 - Fan Speed Ramp Rate
Set the ramping style of the fan speedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
84 - Reset Factory Default
Reset Fan to Factory DefaultsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
Adding your device to a Z-Wave network 1. Follow the instructions for your Z-Wave certified Controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press the top of bottom of the wireless smart Fan controller
To remove and reset the device 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-wave network 2. Once the controller is ready to remove your device, press the top or bottom of the wireless smart Fan controller
To return your switch to factory defaults: Pull the airgap switch. Press and hold the bottom button, push the airgap switch in and continue holding the bottom button for 10 seconds. The LED will flash once each of the 8 colors then stop.
