Zooz

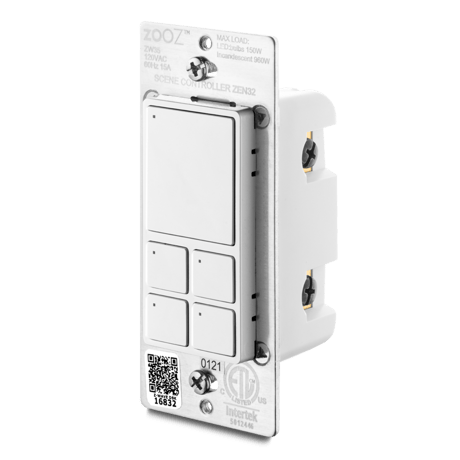

SCENE CONTROLLER
ZEN32 800LR
Binary Switch DT
HW: 02 FW: 02.10
EFR32ZG23A
7.19.3
0x027A (634)
N/A
0x7000 (28672)
ZC14-23090337
2023-09-26 09:09:05
N/A
Enhanced End Node 232
Always On End Node
Control a single load electrically with the main button and up to 35 scenes or devices through remote control.
1 - Indicator mode for relay
Indicator mode for relay.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
2 - Indicator mode for Button 1
Indicator mode for Button 1.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
3 - Indicator mode for Button 2
Indicator mode for Button 2.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - Indicator mode for Button 3
Indicator mode for Button 3.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
5 - Indicator mode for Button 4
Indicator mode for Button 4.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
6 - Indicator color for relay
Indicator color for relay.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
7 - Indicator color for Button 1
Indicator color for Button 1.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
8 - Indicator color for Button 2
Indicator color for Button 2.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
9 - Indicator color for Button 3
Indicator color for Button 3.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
10 - Indicator color for Button 4
Indicator color for Button 4.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
11 - Indicator brightness for relay
Indicator brightness for relay.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
12 - Indicator brightness for Button 1
Indicator brightness for Button 1.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
13 - Indicator brightness for Button 2
Indicator brightness for Button 2.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
14 - Indicator brightness for Button 3
Indicator brightness for Button 3.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
15 - Indicator brightness for Button 4
Indicator brightness for Button 4.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
16 - Auto Turn-Off Timer
Setting auto off minutes.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
17 - Auto Turn-On Timer
Setting auto on minutes.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
18 - Restores state
Restore state after power failure.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
19 - Enable or Disable local/Z-Wave control
Settings to disable the output.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
20 - Behavior when Output disabled
Relay Behavior when Disabled Local / Z-Wave Control.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
21 - 3-way switch type
External switch type.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
22 - Disable programming from button
Enable or Disable the local button function.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
23 - Disable LED blinking
Disable LED blinking when a setting is changed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
24 - Disable Relay Scene
Disable scene of main button.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
25 - Association Group Trigger
Select control association group way.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
26 - Scene of momentary switch in 3-way
Enable scene from momentary switch in 3-way.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
1. Initiate inclusion (pairing) in the app (or web interface). 2. TAP THE MAIN SWITCH BUTTON 3 TIMES QUICKLY if using traditional Z-Wave inclusion. 3. The LED indicator will blink blue to signal communication and turn green for 3 seconds if inclusion is successful or turn red for 3 seconds if the pairing attempt fails.
1. Bring your Z-Wave gateway (hub) close to the switch if possible 2. Put the Z-Wave hub into exclusion mode (not sure how to do that? [email protected]) 3. Tap the main switch button 3 times quickly (the LED indicator will start blinking blue) 4. Your hub will confirm exclusion, the LED indicator on the switch will turn green for 3 seconds, and the device will disappear from your controller''s device list reset
If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the switch, press and hold the switch button for 20 seconds until the LED indicator turns solid red. Release the button, and immediately after, tap remote button 1 once to complete the reset. The LED indicators on all buttons will flash red to confirm a successful reset.
SCAN THE QR CODE / ENTER THE 5-DIGIT DSK if using the new SmartStart method. [a visual arrow pointing to the QR code on the switch]
