Kaadas

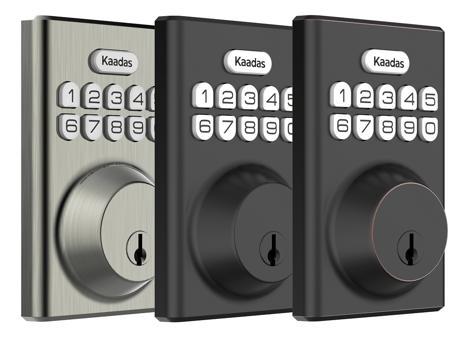

Z-Wave Keypad Deadbolt (KA251-Z)
KA251-Z
Lock DT
HW: 33 FW: 01.04:01.27
ZGM130S037HGN2 / ZGM130S037HGN1
7.18.1
0x021D (541)
N/A
0x0103 (259)
ZC14-23110361
2023-11-10 08:50:56
N/A
Enhanced End Node 232
Listening Sleeping Slave
Yes
Lock and unlock your door anywhere and anytime by integrate your lock into your Z-Wave™ home automation or security system for ultimate convenience.
1 - Configure volume level
Configure volume levelSize: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
2 - Configure led
Enable/disable ledSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
3 - Timed battery report
Configure timed battery reportSize: 2 bytes
Default: 1440
Minimum: 0
Maximum: 14400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - Association Group 2 Settings
Configure the Basic Set valueSize: 1 byte
Default: 1
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
1. Enter master mode(Kaadas + Kaadas + Master PIN Code + Kaadas) 2. Input "0" to enter "Network settings" 3. Input "1 + Kaadas" to enter "Include mode"
1. Enter master mode(Kaadas + Kaadas + Master PIN Code + Kaadas) 2. Input "0" to enter "Network settings" 3. Input "2 + Kaadas" to enter "Exclusion mode"
1. Operations on lock 1) Keep your lock in door open and the lock "unlock" status. 2) Using the Reset Tool, press and hold the Reset Button for 5 seconds until you hear the "BEEP" and the latch rotates, turning the thumb turn to the vertical position automatically. 2. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
You may find the DSK on individual package of each product.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
| Home Security | Cover status: Tampering, product cover removed |
