InWave Pro Z-Wave device database

Brand

Aeotec

Name

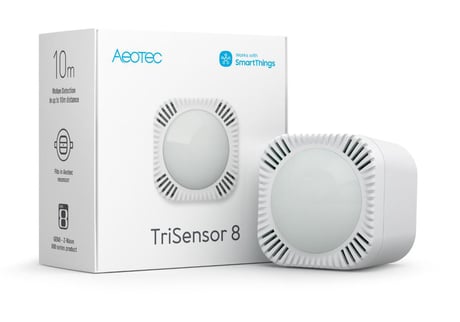

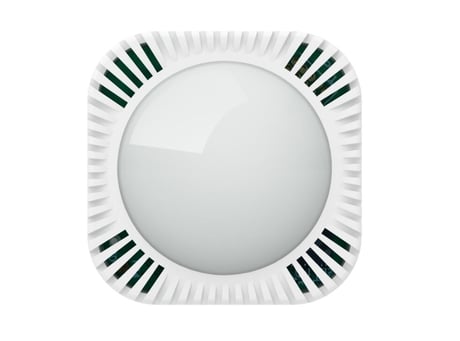

TriSensor 8

Part number

ZWA045-A

Device type

Notification Sensor DT

Description

Aeotec TriSensor 8

Z-Wave Features

Category (1)

Sensors

Z-Wave Chip Series

800

Regions (5)

0 / 0

Download configuration parameters

Download configuration parameters and import them in your Smart Home hub.

Please log in to download configuration parameters

3 - Motion Untrigger Time

Timeout configuration set in second for TriSensor to send no trigger status.

Size: 2 bytes

Default: 60

Minimum: 30

Maximum: 3600

Possible values

From	To	Desription
30	3600	swconds

4 - Motion Sensitivity

Set the sensitivity of TriSensor.

Size: 1 byte

Default: 2

Minimum: 0

Maximum: 3

Possible values

From	To	Desription
0	0	disable
1	1	minimum sensitivity
2	2	default sensitivity
3	3	maximum sensitivity

7 - Motion Group Control

Set control of other devices on group2 based on motion trigger

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 6

Possible values

From	To	Desription
0	0	Send BASIC_SET (0xFF) when motion is triggered to associated device Send BASIC_SET (0x00) when motion is untriggered to associated device
1	1	Send BASIC_SET (0x00) when motion is triggered Send BASIC_SET (0xFF) when motion is untriggered
2	2	Send BASIC_SET (0xFF) when motion is triggered, Nothing when motion untriggered.
3	3	Send BASIC_SET (0x00) when motion is triggered, Nothing when motion untriggered.
4	4	Send BASIC_SET (0x00) when motion is untriggered, Nothing when motion triggered.
5	5	Send BASIC_SET (0xFF) when motion is untriggered, Nothing when motion triggered.
6	6	Send BASIC_SET (value is configured by parameter 8) when motion is triggered to associated devices. Send BASIC_SET (value is configured by parameter 8) when motion is untriggered.

8 - Motion Group Value Setting

Set Basic Set value for Group2. The MSB will act as the basic set value when motion trigger. The LSB will act as the basic set value when motion untrigger. E.g. value=0x0A00, then BASIC_SET(0x0A) will be sent when motion trigger, BASIC_SET(0x00) will be sent when motion untrigger.

Size: 2 bytes

Default: 65280

Minimum: 0

Maximum: 65535

Possible values

From	To	Desription
0	65535	Motion Group Value Setting

9 - Motion Group Control Requirement

Set threshold of Light/Lux when devices associated in group2 should be triggered by motion. Associated device only receive BASIC_SET command when light <= (this value).

Size: 2 bytes

Default: 30000

Minimum: 0

Maximum: 30000

Possible values

From	To	Desription
0	30000	lux

10 - Over Heat Group Threshold

Set threshold of temperature. Designed to control Air Conditioners or temperature controllers ON or OFF. If measured temperature >= (this value, Scale is determined by Param24) send BASIC_SET (0xFF) to associated devices. If measured temperature < (this value) send BASIC_SET (0x00) to associated devices. E.g. Value 239 means 23.9 C. Value 750 means 75.0 F.

Size: 2 bytes

Default: 806

Minimum: 806

Maximum: 1850

Possible values

From	To	Desription
0	0	Disable.
806	1850	0.1 degrees

11 - Under Heat Group Threshold

Set threshold of temperature. Designed to control Air Conditioners or temperature controllers ON or OFF. If measured temperature <= (this value, Scale is determined by Param24) send BASIC_SET (0xFF) to associated devices. If measured temperature > (this value) send BASIC_SET (0x00) to associated devices. E.g. Value 155 means 15.5 C. Value 600 means 60.0 F.

Size: 2 bytes

Default: 600

Minimum: 140

Maximum: 600

Possible values

From	To	Desription
0	0	Disable.
140	600	0.1 degrees

12 - Over Light Group Threshold

Set threshold of Light/Lux. If measured light/lux >= (this value) send BASIC_SET (0xFF) to associated devices. If measured light < (this value) send BASIC_SET (0x00) to associated devices.

Size: 2 bytes

Default: 2000

Minimum: 0

Maximum: 30000

Possible values

From	To	Desription
0	0	Disable.
1	30000	Enable. 1~30000 Lux.

13 - Under Light Group Threshold (Group6)

Set threshold of Light/Lux. If measured light/lux <= (this value) send BASIC_SET (0xFF) to associated devices. If measured light/lux > (this value) send BASIC_SET (0x00) to associated devices.

Size: 2 bytes

Default: 100

Minimum: 0

Maximum: 30000

Possible values

From	To	Desription
0	0	Disable.
1	30000	Enable. 1~30000 Lux.

14 - Low Battery Threshold

Configure low battery report threshold, sends low battery report via notification and battery report when battery level drops under setting. Unit %.

Size: 1 byte

Default: 20

Minimum: 10

Maximum: 50

Possible values

From	To	Desription
10	50	percent

15 - Threshold Check Enable/Disable

Threshold Check Enable/Disable

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	disable threshold reports
1	1	enable threshold reports

16 - Temperature Threshold

Threshold = (Value * 0.1) 0 = disable.

Size: 1 byte

Default: 30

Minimum: 0

Maximum: 255

Possible values

From	To	Desription
0	0	Disabled
1	255	0.1 degrees

17 - Lux Threshold

Lux Threshold

Size: 2 bytes

Default: 250

Minimum: 0

Maximum: 10000

Possible values

From	To	Desription
0	0	Disabled
1	10000	lux

18 - Threshold Check Time

Set threshold check time in seconds.

Size: 2 bytes

Default: 900

Minimum: 60

Maximum: 65535

Possible values

From	To	Desription
60	65535	seconds

19 - Sensor Limit Control

This value is bit mask. Used to enable/disable measurement reports for various sensors that is morethan the upper limit value or less than the lower limit value.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 15

Possible values

From	To	Desription
0	0	Disabled
1	1	Temperature upper level
2	2	Lux upper level
4	4	Temperature lower level
8	8	Lux lower level

20 - Temperature Upper Limit

Set upper limit level for temperature set in scale of 0.1. Scale is determined by Param23. If (Current measurement) > (Upper Limit), then report sensor.

Size: 2 bytes

Default: 824

Minimum: 824

Maximum: 2120

Possible values

From	To	Desription
824	2120	0.1 degrees

21 - Temperature Lower Limit

Set lower limit level for temperature set in scale of 0.1. Scale is determined by Param23. If (Current Measurement) < (Lower limit), then report sensor.

Size: 2 bytes

Default: 320

Minimum: -400

Maximum: 320

Possible values

From	To	Desription
-400	320	0.1 degrees

22 - Lux Upper Limit

Set lux upper limit level. If (Current measurement) > (Upper Limit), then report sensor.

Size: 2 bytes

Default: 1000

Minimum: 0

Maximum: 30000

Possible values

From	To	Desription
0	30000	lux

23 - Set lux lower limit level

Set lux lower limit level. If (Current Measurement) < (Lower limit), then report sensor.

Size: 2 bytes

Default: 100

Minimum: 0

Maximum: 30000

Possible values

From	To	Desription
0	30000	lux

24 - Temperature Scale

Set the scale for temperature when reports.

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Celsius
1	1	Fahrenheit

25 - Automatic Interval Time

Interval time set in seconds to check the sensor report. Multilevel Sensor Report will be sent when timeout.

Size: 2 bytes

Default: 3600

Minimum: 30

Maximum: 65535

Possible values

From	To	Desription
30	65535	seconds

Type	Name
Unknown	TriSensor-operation2024-1-3Rev9.0AeotecTriSensor.pdf

Group	Type
Home Security	(Refer to parameters): State idle Motion sensor status: Motion detection
Power Management	Battery maintenance status: Replace battery soon Battery maintenance status: Replace battery now
System	(Refer to parameters): State idle SW status: System software failure (manufacturer proprietary failure code provided)

Sensor type
Air Temperature
Illuminance
