Aeotec
Home Energy Meter 8
ZWA046-C
Meter Sensor DT
HW: 46 FW: 01.06
EFR32ZG23A
7.20.2
0x0371 (881)
N/A
0x0003 (3)
ZC14-24060427
2024-06-03 09:59:32
N/A
Enhanced End Node 232
Always On End Node

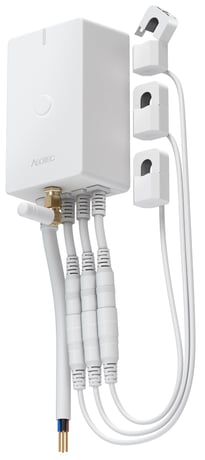

Aeotec Home Energy Meter 8
3 - Threshold Check Enable/Disable
Enable selective reporting only when power change reaches a certain threshold or percentage (set in parameters 4-19). This is used to reduce network traffic.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable threshold reporting |
| 1 | 1 | Enable threshold reporting |
4 - Import watt threshold (Total)
Threshold change in total import wattage (Whole HEM) to induce an automatic report.Size: 2 bytes
Default: 50
Minimum: 5
Maximum: 60000
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 60000 | Watt threshold change for import (Whole HEM) |
5 - Import watt threshold (Phase A)
Threshold change in import wattage for Phase A to induce an automatic report.Size: 2 bytes
Default: 50
Minimum: 5
Maximum: 60000
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 60000 | Watt threshold change for import (Phase A) |
6 - Import watt threshold (Phase B)
Threshold change in import wattage for Phase B to induce an automatic report.Size: 2 bytes
Default: 50
Minimum: 5
Maximum: 60000
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 60000 | Watt threshold change for import (Phase B) |
7 - Import watt threshold (Phase C)
Threshold change in import wattage for Phase C to induce an automatic report.Size: 2 bytes
Default: 50
Minimum: 5
Maximum: 60000
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 60000 | Watt threshold change for import (Phase C) |
8 - Export watt threshold (Total)
Threshold change in total export wattage (Whole HEM) to induce an automatic report.Size: 2 bytes
Default: 50
Minimum: 5
Maximum: 60000
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 60000 | Watt threshold change for export (Whole HEM) |
9 - Export watt threshold (Phase A)
Threshold change in export wattage for Phase A to induce an automatic report.Size: 2 bytes
Default: 50
Minimum: 5
Maximum: 60000
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 60000 | Watt threshold change for export (Phase A) |
10 - Export watt threshold (Phase B)
Threshold change in export wattage for Phase B to induce an automatic report.Size: 2 bytes
Default: 50
Minimum: 5
Maximum: 60000
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 60000 | Watt threshold change for export (Phase B) |
11 - Export watt threshold (Phase C)
Threshold change in export wattage for Phase C to induce an automatic report.Size: 2 bytes
Default: 50
Minimum: 5
Maximum: 60000
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 60000 | Watt threshold change for export (Phase C) |
12 - Import watt percent threshold (Total)
Percentage change in total import wattage (Whole HEM) to induce an automatic report.Size: 1 byte
Default: 20
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Percentage change (%) for import (Whole HEM) |
13 - Import watt percent threshold (Phase A)
Percentage change in import wattage for Phase A to induce an automatic report.Size: 1 byte
Default: 20
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Percentage change (%) for import (Phase A) |
14 - Import watt percent threshold (Phase B)
Percentage change in import wattage for Phase B to induce an automatic report.Size: 1 byte
Default: 20
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Percentage change (%) for import (Phase B) |
15 - Import watt percent threshold (Phase C)
Percentage change in import wattage for Phase C to induce an automatic report.Size: 1 byte
Default: 20
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Percentage change (%) for import (Phase C) |
16 - Export watt percent threshold (Total)
Percentage change in total export wattage (Whole HEM) to induce an automatic report.Size: 1 byte
Default: 20
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Percentage change (%) for export (Whole HEM) |
17 - Export watt percent threshold (Phase A)
Percentage change in export wattage for Phase A to induce an automatic report.Size: 1 byte
Default: 20
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Percentage change (%) for export (Phase A) |
18 - Export watt percent threshold (Phase B)
Percentage change in export wattage for Phase B to induce an automatic report.Size: 1 byte
Default: 20
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Percentage change (%) for export (Phase B) |
19 - Export watt percent threshold (Phase C)
Percentage change in export wattage for Phase C to induce an automatic report.Size: 1 byte
Default: 20
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Percentage change (%) for export (Phase C) |
100 - Set 101-106 to default
Set automatic report configuration parameters (101-106) to their default values.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No action |
| 1 | 1 | Set parameters 101-106 to their default values |
101 - Automatic Report list 1 (Import)
Configure which reports are sent in Report group 1 (Import). This is a bitmask. Refer to the device manual's table for parameter 101-103 flags.Size: 4 bytes
Default: 50529027
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4294967295 | Bitmask configuring reports for Group 1 (Import). See device manual table for specific bit flags (Parameter 101-103). |
102 - Automatic Report list 2 (Import)
Configure which reports are sent in Report group 2 (Import). This is a bitmask. Refer to the device manual's table for parameter 101-103 flags.Size: 4 bytes
Default: 202116108
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4294967295 | Bitmask configuring reports for Group 2 (Import). See device manual table for specific bit flags (Parameter 101-103). |
103 - Automatic Report list 3 (Import)
Configure which reports are sent in Report group 3 (Import). This is a bitmask. Refer to the device manual's table for parameter 101-103 flags.Size: 4 bytes
Default: 4042322160
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4294967295 | Bitmask configuring reports for Group 3 (Import). See device manual table for specific bit flags (Parameter 101-103). |
104 - Automatic Report list 1 (Export)
Configure which reports are sent in Report group 1 (Export). This is a bitmask. Refer to the device manual's table for parameter 104-106 flags.Size: 4 bytes
Default: 50529027
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4294967295 | Bitmask configuring reports for Group 1 (Export). See device manual table for specific bit flags (Parameter 104-106). |
105 - Automatic Report list 2 (Export)
Configure which reports are sent in Report group 2 (Export). This is a bitmask. Refer to the device manual's table for parameter 104-106 flags.Size: 4 bytes
Default: 202116108
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4294967295 | Bitmask configuring reports for Group 2 (Export). See device manual table for specific bit flags (Parameter 104-106). |
106 - Automatic Report list 3 (Export)
Configure which reports are sent in Report group 3 (Export). This is a bitmask. Refer to the device manual's table for parameter 104-106 flags.Size: 4 bytes
Default: 4042322160
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4294967295 | Bitmask configuring reports for Group 3 (Export). See device manual table for specific bit flags (Parameter 104-106). |
110 - Set 111-116 to default
Set automatic report interval time parameters (111-116) to their default values.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No action |
| 1 | 1 | Set parameters 111-116 to their default values |
111 - Automatic list 1 Interval Time (Import)
Set the interval time (in seconds) for sending reports defined in Report group 1 (Import - Parameter 101).Size: 4 bytes
Default: 3600
Minimum: 10
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 4294967295 | Interval time in seconds for Report Group 1 (Import) |
112 - Automatic list 2 Interval Time (Import)
Set the interval time (in seconds) for sending reports defined in Report group 2 (Import - Parameter 102).Size: 4 bytes
Default: 7200
Minimum: 10
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 4294967295 | Interval time in seconds for Report Group 2 (Import) |
113 - Automatic list 3 Interval Time (Import)
Set the interval time (in seconds) for sending reports defined in Report group 3 (Import - Parameter 103).Size: 4 bytes
Default: 7200
Minimum: 10
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 4294967295 | Interval time in seconds for Report Group 3 (Import) |
114 - Automatic list 1 Interval Time (Export)
Set the interval time (in seconds) for sending reports defined in Report group 1 (Export - Parameter 104).Size: 4 bytes
Default: 3600
Minimum: 10
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 4294967295 | Interval time in seconds for Report Group 1 (Export) |
115 - Automatic list 2 Interval Time (Export)
Set the interval time (in seconds) for sending reports defined in Report group 2 (Export - Parameter 105).Size: 4 bytes
Default: 7200
Minimum: 10
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 4294967295 | Interval time in seconds for Report Group 2 (Export) |
116 - Automatic list 3 Interval Time (Export)
Set the interval time (in seconds) for sending reports defined in Report group 3 (Export - Parameter 106).Size: 4 bytes
Default: 7200
Minimum: 10
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 4294967295 | Interval time in seconds for Report Group 3 (Export) |
252 - Enable/disable to lock configuration setting
Enable/disable locking of all configuration parameters.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable configuration lock (parameters are changeable) |
| 1 | 1 | Enable configuration lock (parameters are not changeable via Z-Wave) |
1. Turn your gateway/ main controller into adding mode. 2. Press once the Action Button on the product.
1. Turn your gateway/ main controller into adding mode. 2. Press once the Action Button on the product.
Press and hold the Action Button on product for 10s. Note: Please use this procedure only when the network’s primary controller is missing or otherwise inoperable.
Page 4 in the operation manual
