Vision

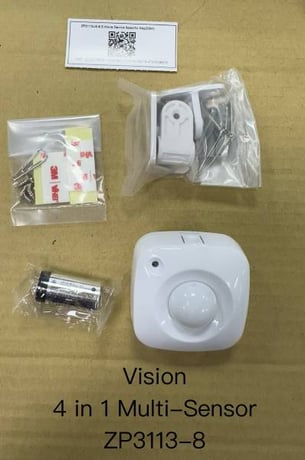

4 IN 1 PIR Sensor
ZP3113US-8
Notification Sensor DT
HW: 01 FW: 10.18:02.01
EFR32ZG23B
7.18.8
0x0109 (265)
0x2021 (8225)
N/A
ZC14-24070438
2024-07-07 17:01:46
N/A
Enhanced End Node 232
Reporting Sleeping End Node
(ZP3113-8) monitors movement, and send Z-Wave signal when movement is detected inside the building.
1 - Temperature Type
Choose the temperature scale (°C or °F)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | °C |
| 1 | 1 | °F |
2 - Temperature Difference
Temperature difference X °C to auto report (every 5 minutes detect)Size: 1 byte
Default: 30
Minimum: 1
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 50 | N * 0.1°C (Values between 0.1°C and 5°C) |
3 - Humidity Difference
Humidity difference X % to auto report (every 5 minutes detect)Size: 1 byte
Default: 20
Minimum: 1
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 50 | percent |
4 - Light Difference
Light difference X % to auto report (every 3 minutes detect).Size: 1 byte
Default: 10
Minimum: 0
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Do not report |
| 5 | 50 | percent |
5 - Motion Re-trigger Duration
Re-trigger duration: User can change value from 15 to 900 seconds to setup the re-trigger time when there is no movement detected in the period of time.Size: 2 bytes
Default: 15
Minimum: 15
Maximum: 900
Possible values
| From | To | Desription |
|---|---|---|
| 15 | 900 | seconds |
6 - Infrared sensor sensitivity adjustment
Infrared sensor sensitivity adjustment, 7 levels sensitivity, 1 = most sensitive, 7 = most insensitiveSize: 1 byte
Default: 4
Minimum: 1
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 7 | Sensitivity, 1 = most sensitive, 7 = most insensitive |
7 - LED Mode
Define the LED's working method.Size: 1 byte
Default: 1
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | LED Turn Off (Both Temp/PIR Trigger) |
| 2 | 2 | LED Quick Flash (Temp. / PIR Trigger) |
| 3 | 3 | PIR Trigger (Quick Flash) Temp. Trigger (LED Off) |
8 - Retry Count
PIR Trigger Notification Re-sending Times: In order to prevent any gateway lost, user can change the value from 0 to 5 times to setup the notification re-sending times in case there is no ack from the gateway after sending the PIR' Trigger Notification.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | retry count |
9 - Supervision Report delayed reception time
To set up the Supervision Report delayed reception time.Size: 2 bytes
Default: 500
Minimum: 500
Maximum: 10000
Possible values
| From | To | Desription |
|---|---|---|
| 500 | 1000 | milliseconds |
10 - Temperature offset
Offset unit in 0.1 degree (C/F)Size: 1 byte
Default: 100
Minimum: 0
Maximum: 200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 200 | Set 0~200 is -10.0~+10.0°C. Default is 100 (0°C) |
11 - Humidity Offset Value
Offset unit in 0.1%Size: 1 byte
Default: 100
Minimum: 0
Maximum: 200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 200 | Set 0~200 is -10.0~+10.0%. Default is 100 (0%) |
224 - WakeUp Test Mode
To wake up the Test Mode for testing the command class and signal purpose only. Please do not try it out of these two purposes.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 255 | 255 | Device always Wake-Up |
To add the ZP3113 to your Z-Wave network (inclusion), place your Z-Wave primary controller into inclusion mode. Press the Program Switch of ZP3113 once for sending the NIF. After sending NIF, Z-Wave will send the auto inclusion, otherwise, ZP3113 will go to sleep after 30 seconds. The LED indicator will be flashing while the inclusion is continued.
On manual page 7, no#5
Press “Program SW” once to send NIF and LED will flash once, it takes around 10 seconds to send “Wake Up Notification” for receiving all command classes or go to sleep mode after 10 seconds without receiving any command.
Remove cover to trigged tamper switch, LED flash once & send out Notification Report. Press Program Switch 5 or more times within 10 seconds, ZP3113 will send the “Device Reset Locally Notification” command and reset to the factory default. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.)
Light Report:There are 3 methods could activate the Light Report (in hexadecimal): a.Use SENSOR_MULTILEVEL_GET for getting the Light Report. b.If the present illumination is different with the sensor record and exceed the setting program, the sensor will report the present illumination. c.Every 10% decreasing from 100% will report automatically.
The DSK label is on the backside of ZP3113. Scan the DSK label to access the SmartStart if gateway ''s UI supports SmartStart
| Group | Type |
|---|---|
| Home Security |
|
| Sensor type |
|---|
| Air Temperature |
| Illuminance |
| Humidity |
