Yale

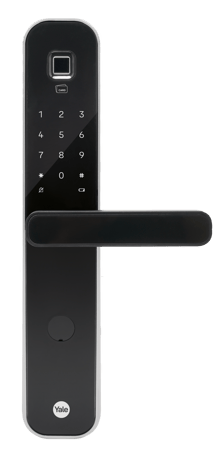

Yale YDM7220
YDM7220
Lock DT
HW: 02 FW: 03.06:11.02
ZGM130S037HGN2 / ZGM130S037HGN1
7.20.2
0x0129 (297)
0xE018 (57368)
N/A
ZC14-24070450
2024-07-11 06:42:11
N/A
Enhanced End Node 232
Listening Sleeping Slave
Yes
Never worry about carrying around or losing your keys again. Unlock and lock your home with ease from the backlit touchscreen keypad.
4 - Wrong Code Entry Limit
Adjust the limit for wrong code entries allowed by your lockSize: 1 byte
Default: 5
Minimum: 3
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
How to add (pairing) the product into Z-Wave network 1. Operate on lock following guide below: 1) Enter Master Code-> ‘R’ -> ‘9’ -> ‘#’ -> ‘1’ -> ‘#’ (only can be activated in advanced mode)
How to remove the product from Z-Wave network 1. Operate on lock following guide below: 1) Enter Master Code-> ‘R’ -> ‘9’ -> ‘#’ -> ‘3’ -> ‘#’ -> Master Code -> ‘#’ (only can be activated in advanced mode)
How to factory reset for Z-Wave Note: please use this procedure only when the network primary controller is missing or otherwise inoperable. 1) Press and hold the "factory reset" key after the lock body 2) Power off the lock body for more than 5S, and plug in the battery again 3) Plug in the battery again and wait for 5S to release the "factory reset" key
2.6 Z-Wave DSK Location 2.6.1 How to locate the DSK representation on the product You can find the QR code when you open the battery box 2.6.2 How to access the DSK representation via the UI You may also find the QR Code and DSK on individual package of each product. Please do not remove or damage them.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
| Power Management |
|
