Zooz

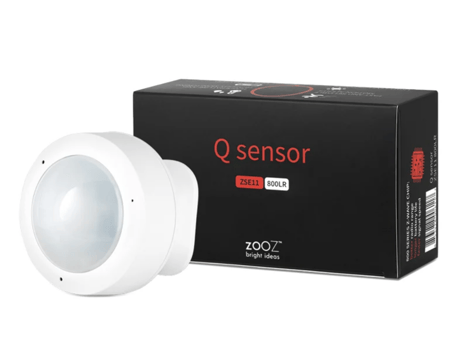

Q Sensor
ZSE11 800LR
Notification Sensor DT
HW: 02 FW: 02.00
EFR32ZG23A
7.18.8
0x027A (634)
0x0201 (513)
N/A
ZC14-24070454
2024-07-22 18:05:36
N/A
Enhanced End Node 232
Reporting Sleeping End Node
Yes
The Q Sensor makes your home smarter by gathering real time data about security and climate.
12 - Motion sensitivity
Motion sensitivitySize: 1 byte
Default: 6
Minimum: 0
Maximum: 8
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
13 - Motion untrigger time
Motion untrigger timeSize: 2 bytes
Default: 30
Minimum: 10
Maximum: 3600
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
14 - Motion group control
Motion group controlSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
15 - Motion Group Value Setting
Motion Group Value SettingSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
18 - Temperature report scale
Temperature report scaleSize: 1 byte
Default: 2
Minimum: 1
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
19 - LED activity
LED activitySize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
20 - Vibration sensor enable or disable
Vibration sensor enable or disableSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
21 - Light sensor checking interval
Light sensor checking intervalSize: 2 bytes
Default: 10
Minimum: 0
Maximum: 43200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
22 - Temperature sensor checking interval
Temperature sensor checking intervalSize: 2 bytes
Default: 60
Minimum: 0
Maximum: 43200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
23 - Humidity sensor checking interval
Humidity sensor checking intervalSize: 2 bytes
Default: 60
Minimum: 0
Maximum: 43200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
32 - Low battery threshold
Low battery thresholdSize: 1 byte
Default: 10
Minimum: 10
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
172 - Battery power checking interval
Battery power checking intervalSize: 2 bytes
Default: 4
Minimum: 0
Maximum: 744
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
173 - Report interval for temperature sensor
Report interval for temperature sensorSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 43200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
174 - Report interval for humidity sensor
Report interval for humidity sensorSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 43200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
175 - Report interval for light sensor
Report interval for light sensorSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 43200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
182 - Battery threshold
Battery thresholdSize: 1 byte
Default: 2
Minimum: 0
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
183 - Temperature threshold
Temperature thresholdSize: 2 bytes
Default: 10
Minimum: 0
Maximum: 144
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
184 - Humidity threshold
Humidity thresholdSize: 1 byte
Default: 5
Minimum: 0
Maximum: 80
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
185 - Light threshold
Light thresholdSize: 2 bytes
Default: 10
Minimum: 0
Maximum: 30000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
201 - Temperature offset parameter
Temperature offset parameterSize: 1 byte
Default: 100
Minimum: 0
Maximum: 200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
202 - Humidity offset parameter
Humidity offset parameterSize: 1 byte
Default: 100
Minimum: 0
Maximum: 200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
203 - Light offset parameter
Light offset parameterSize: 1 byte
Default: 100
Minimum: 0
Maximum: 200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
Put your Z-Wave® hub into inclusion mode and click the Z-Wave® button 3 times as quickly as possible. The LED indicator will start blinking to confirm inclusion mode and turn off once inclusion is completed. The sensor will automatically pair as a repeater if connected to USB power, no special button sequence required.
1. Bring the sensor within direct range of your Z-Wave® gateway (hub). 2. Put the Z-Wave® hub into exclusion mode (not sure how to do that? [email protected]). 3. Press & release the Z-Wave® button 3 times quickly. 4. Your hub will confirm exclusion and the sensor will disappear from your controller''s device list.
Press and hold the ZWave® button for 3 seconds to wake the sensor up manually.
When your network’s primary controller is missing or otherwise inoperable, you may need to reset the device to factory settings manually. In order to complete the process, make sure the sensor is powered, then press and hold the Z-Wave® button for at least 20 seconds. The LED indicator will start flashing and turn solid on for a couple of seconds to indicate successful reset. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.
If you’re using an S2 hub, it will ask you to enter the DSK key or scan the QR code printed on the back cover sticker to complete SmartStart inclusion.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security |
|
| Power Management |
|
| Sensor type |
|---|
| Air Temperature |
| Illuminance |
| Humidity |
