Alfred

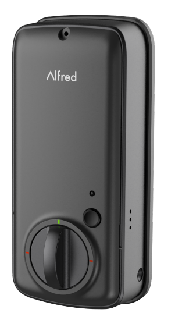

Smart Home TouchscreenDeadbolt
DB2S
Lock DT
HW: 04 FW: 01.01:01.02
EFR32ZG23A
7.18.4
0x0465 (1125)
0x0103 (259)
0x0004 (4)
ZC14-24070460
2024-07-30 17:45:21
N/A
Enhanced End Node 232
Listening Sleeping End Node
Yes
Lock and unlock your door anywhere and anytime by integrate your lock into your Z-Wave® home automation or security system for ultimate convenience.
1 - Configure volume level
Configure volume levelSize: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | silent |
| 1 | 1 | Low volume |
| 2 | 2 | High volume |
2 - Configure led
LED on the inside of the product.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | OFF |
| 1 | 1 | ON (blink) |
3 - Timed battery report
Enable/Disable timed battery report and sets how often battery is reported in minutes.Size: 2 bytes
Default: 1440
Minimum: 0
Maximum: 14400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable timed battery report |
| 1 | 14400 | Enable timed battery report and sets how often battery is reported in minutes. |
4 - Association Group 2 Settings
Determine the Basic Set value to control other Z-Wave devices directly.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable completely. |
| 1 | 1 | Unlocked Status sends Basic SET OxFF, Locked Status sends Basic SET Ox00. |
| 2 | 2 | Unlocked Status sends Basic SET 0x00, Locked Status sends Basic Set OxFF. |
| 3 | 3 | Sends only Basic SET OxFF when Unlocked Status happens. |
| 4 | 4 | Sends only Basic SET 0x00 when Locked Status happens. |
| 5 | 5 | Sends only Basic SET 0x00 when Unlocked Status happens. |
| 6 | 6 | Sends only Basic SET OxFF when Locked Status happens. |
1. Enter master mode(input ** + Master PIN Code + √) 2. Input "8" to enter "Network settings" 3. Input "1" to enter "Include mode"
1. Enter master mode(input ** + Master PIN Code + √ ) 2. Input "8" to enter "Network settings" 3. Input "2" to enter "Exclusion mode"
1. Operations on lock 1) Open the door and keep the lock in "unlock" status. 2) Open battery box and find the reset button. 3) Use the reset tool or a thin object to press and hold the reset button 4) Keep holding the reset button and remove the battery, and then put it back in. 5) Keep holding the reset button down until you hear the lock beep (Can take up to 10 seconds). 2. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
You may find the DSK on individual package of each product.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
| Home Security | Cover status: Tampering, product cover removed |
