Philio
In Wall Switch
PAN35-ANZ
Binary Switch DT
HW: 01 FW: 02.00
ZGM130S037HGN2 / ZGM130S037HGN1
7.15.1
0x013C (316)
0x0001 (1)
0x0086 (134)
ZC14-21110010
2021-11-09 09:30:29
N/A
Enhanced End Node 232
Always On Slave

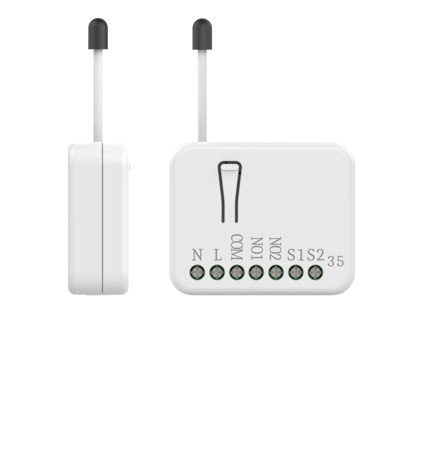

This in-wall switch module is a transceiver which is a Z-Wave Plus TM enabled device and is fully compatible with any Z-Wave TM enabled network. Mini size design let the module can easily hide itself into the wall box and that will be good for the house decoration.
1 - External switch mode
Manual switch S1 and S2 can set to Edge mode or Pulse mode or Edge-Toggle mode, default value is Edge mode.Size: 1 byte
Default: 1
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Edge mode |
| 2 | 2 | Pulse mode |
| 3 | 3 | Edge-Toggle mode |
2 - Restore switch state mode
Whenever the AC power return from lost, PAN35 will restore the switch state which could be SWITCH OFF、LAST SWITCH STATE、SWITCH ON. The default setting is LAST SWITCH STATE.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Switch off |
| 1 | 1 | Last switch state |
| 2 | 2 | Switch on |
1.Have Z-Wave Controller entered inclusion mode. 2.Pressing Include button of PAN35 three times within 2 seconds will enter inclusion mode.
1.Have Z-Wave Controller entered exclusion mode. 2.Pressing Include button of PAN35 three times within 2 seconds will enter exclusion mode. 3.Node ID has been excluded.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. 1.Pressing Include button of PAN35 three times within 2 seconds will enter inclusion mode. 2.Within 1 second, press Include button of PAN35 again for
1. To initiate the SmartSart process, please type in the first five digits of DSK string or scan the QR code. The QR Code can be found on PAN35 or in the box. Ex: DSK: 18112-24021-58001-62259-57092-27453-08187-474082. 2. PAN35 is supported with SmartSta
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management |
|
