Weiser

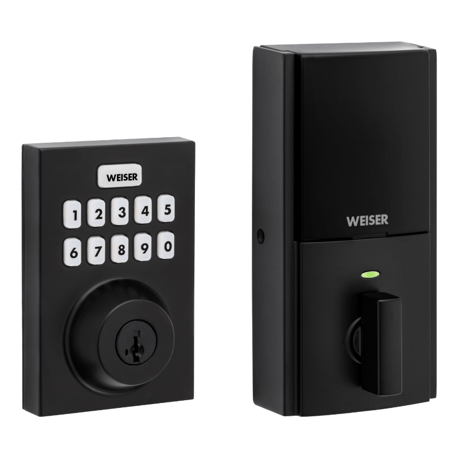

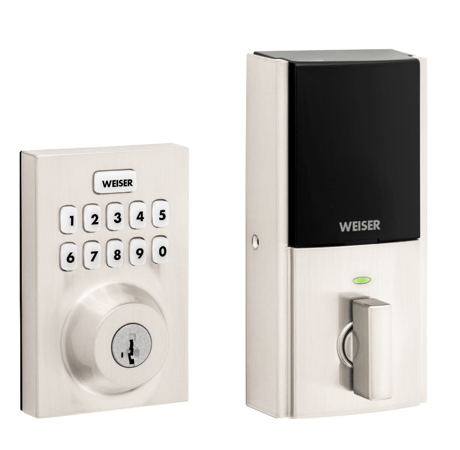

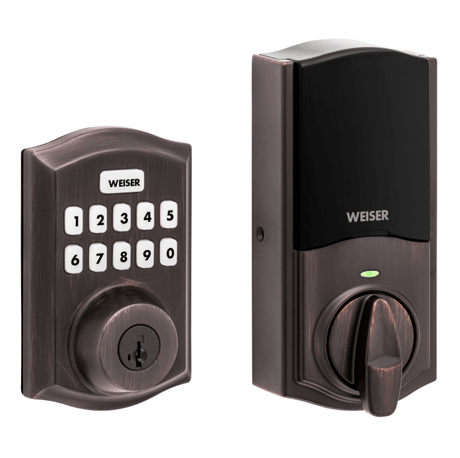

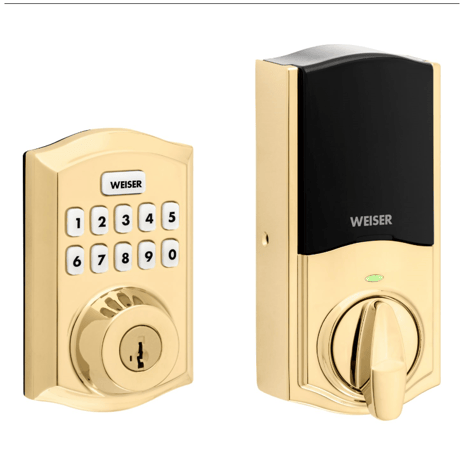

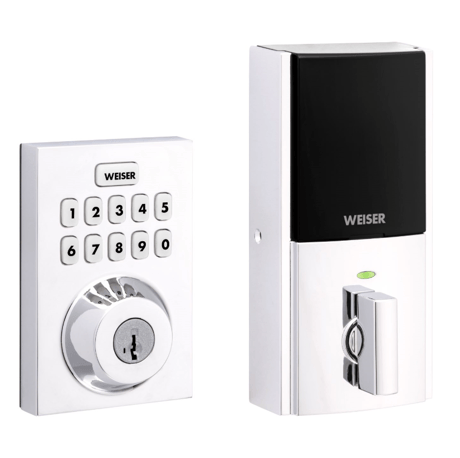

10 Button Z-Wave Plus v2 Deadbolt
GED1800
Lock DT
HW: 01 FW: 10.20:69.35
N/A
N/A
0x0090 (144)
0x0811 (2065)
0x06A9 (1705)
ZC14-24080462
2024-08-12 09:50:23
N/A
N/A
Listening Sleeping End Node
Yes
Weiser 10 key long range touchpad connected electronic deadbolt
1 - Status LED Control
The configuration parameter 1 is a read/write parameter with a one-byte field, used to control the status LED. If set to on, the status LED will show the status of the latch every 6 seconds. If set to off, the status LED will not be shown.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Status LED off |
| 1 | 1 | Status LED on |
2 - Sound Control
The configuration parameter 2 is a read/write parameter with a one-byte field, used to control the lock's buzzer. If set to on, the buzzer is enabled and will sound during normal events. If set to off, the buzzer is disabled, and the buzzer sound will not occur.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Sound (buzzer) is off |
| 1 | 1 | Sound (buzzer) is on |
3 - User Program Button Control
The configuration parameter 3 is a read/write parameter with a one-byte field, used to control the user program button. If set to on, the program button is available for user code maintenance. If set to off, the program button is not available for user code maintenance.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Program button is turned off and not available for use |
| 1 | 1 | Program button is turned on and is available for use |
4 - Secure Screen Control
The configuration parameter 4 is a read/write parameter with a one-byte field, used to control the secure screen functionality on touch locks only. This parameter is not used on non-touch locks and will be ignored. If set to enabled, the touch screen will display the secure screen functionality when woken. If set to disabled, the touch screen will not display the secure screen functionality when woken.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Secure Screen is disabled |
| 1 | 1 | Secure Screen is enabled |
10 - Handing Control
The configuration parameter 10 is a read/write parameter with a one-byte field. When this parameter is read, it will return the handing of the lock. When this parameter is written, it will run a handing operation. When written with a value of 0x01, it will cause the lock to cycle through locking and unlocking until it determines the correct handing. It is suggested that this operation occur while the door is opened so that no obstructions will be in the way for the operation. After the completion of the handing process, a Configuration Report message will be sent back to the requestor. It will contain a non-zero value for success or a zero value for failure.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Failed to read out value |
| 1 | 1 | Determine handing automatically |
| 1 | 2 | right-handed lock; 2 – left-handed lock |
40 - Factory Default Control
CP40 is write parameter with 1byte.Used to request the lock to perform a factory reset back to its default stateSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | readout |
| 1 | 1 | Perform a factory reset and reboot the lock |
| 2 | 2 | Perform a factory reset, but do not reset the lock (production use only) |
46 - Motor Load Value
The configuration parameter 46 is a read only parameter with a four-byte field. It is used to retrieve the calculated sideload value from the last motor run that was performed. This value is used to represent the amount of power needed to run the motor, giving the opportunity to see if any resistance was encountered based on the value read from a free running motor with no resistance. A higher number indicates that the motor had to work harder and use a greater amount of battery power to lock/unlock. Any number greater than the alarm thresholds in configuration parameters 48 and 49 is an indication that action should be taken to improve the lock or door installation.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 16777215
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 16777215 | Motor Load Value |
Initiate the process to add the lock to your system at your smart home controller. Refer to your smart home system instructions for more information.If prompted by your smart home system to add the lock, press button “A” on the lock interior one time. The red LED will illuminate when the lock enters Add Mode.At this time, you may be prompted by your smart home system to enter the 5-digit PIN found on the label of the interior assembly. If not, proceed to step D. If successful, re-name the lock in your system (if applicable). If unsuccessful, follow your system’s instructions to remove the lock from the controller and any other network, then press button “A” on the lock one time.
Removing the lock from the network Follow your smart home system’s instructions to remove the lock from the network. When prompted by the system, press button A” on the lock interior once
Please use this procedure only when the network''s primary controller is missing or otherwise inoperable. 1. Remove Battery Pack. 2 Press and HOLD the "Program" button while reinserting the battery pack. Keep holding the button for 30 seconds until the lock beeps and the status LED flashes red. 3. Press the "Program" button once more. The status LED will flash green and red several times. 4. After a few seconds, the lock will initiate the door handing process, and the latch bolt will extend and retract to learn the orientation of the door.
On the interior portion of the lock above "Button A", the 5 digit DSK and QR code are present.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
| Home Security |
|
| Power Management |
|
