Kwikset
10 Button Z-Wave Plus v2 Deadbolt
869.0
Lock DT
HW: 01 FW: 10.20:69.35
ZGM130S037HGN2 / ZGM130S037HGN1
7.20.2
0x0090 (144)
0x0811 (2065)
0x23A9 (9129)
ZC14-24080463
2024-08-12 09:49:02
N/A
Enhanced End Node 232
Listening Sleeping End Node
Yes

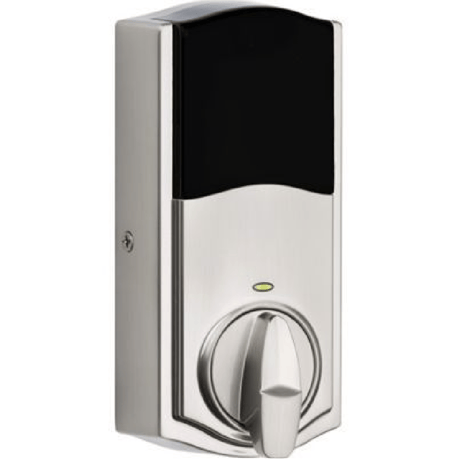

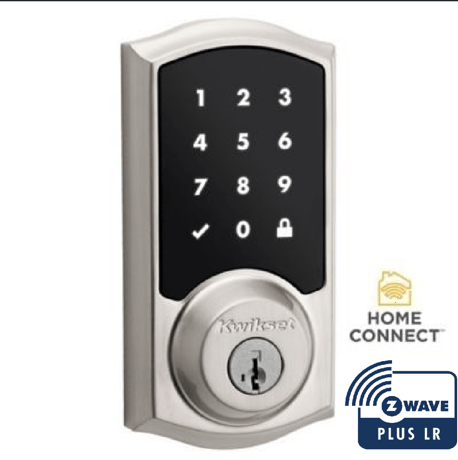

Kwikset 10 key touchpad long range connected electronic deadbolt
1 - Status LED Control
CP1 is r/w parameter with 1byte.Set on status LED show the status of the latch every 6sec.Set off status not be shownSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
2 - Sound Control
CP2 is r/w parameter with 1byte.Set on buzzer is enabled,will sound in normal events.Set off buzzer is disabled,sound won't occurSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
3 - User Program Button Control
CP3 is r/w parameter with 1byte.Set on program button is available for user code maintenance.Set off program button isn't availableSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - Secure Screen Control
CP4 is r/w parameter with 1byte.Control the secure screen functionality on touch locks only.Parameter isn't used on non-touch locksSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
10 - Handing Control
CP10 is r/w parameter with a 1byte.When read return handing of lock.When written run handing operation.Report 0=!success-0=failSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
40 - Factory Default Control
CP40 is write parameter with 1byte.Used to request the lock to perform a factory reset back to its default stateSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
46 - Motor Load Value
CP46 is read parameter with 4byte.Used to retrieve the calculated sideload value from the last motor run it was performedSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 16777215
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
INCLUSION 1. Initiate inclusion (pairing) in the app (or web interface). 2. click the Z-Wave® button 3 times as quickly as possible. 3. The LED indicator will start flashing blue to confirm inclusion mode and turn green for 1 second once inclusion is completed.
1. Bring the Outdoor Plug within direct range of your Z-Wave® gateway (hub). 2. Put the Z-Wave® hub into exclusion mode (not sure how to do that? [email protected]). 3. Press and release the Z-Wave® button 3 times quickly. 4. Your hub will confirm exclusion and the Outdoor Plug will disappear from your controller''s device list.
When your network’s primary controller is missing or otherwise inoperable, you may need to reset the device to factory settings manually. In order to complete the process, make sure the plug is powered, then click the Z-Wave® button twice and hold it the third time for 10 seconds. The LED indicator will flash green 3 times to confirm a successful reset.
If you’re using an S2 hub, it will ask you to enter the DSK PIN or scan the QR code printed on the side of the plug’s outlet to complete SmartStart inclusion.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
| Home Security |
|
| Power Management |
|
