Honeywell Home

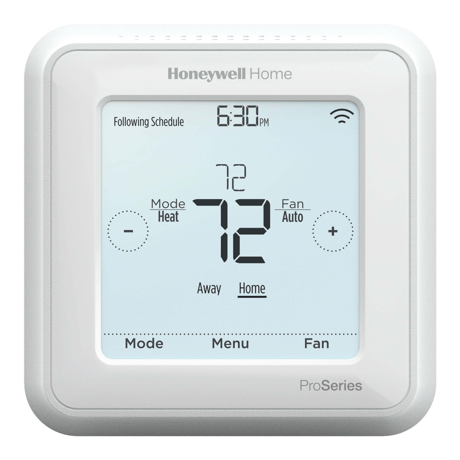

T6 Pro Z-Wave with SmartStart
TH6320ZW2007
Thermostat DT
HW: 01 FW: 03.00:03.01
ZGM130S037HGN2 / ZGM130S037HGN1
7.21.0
0x041B (1051)
0x0011 (17)
0x0009 (9)
ZC14-24100477
2024-10-17 12:22:14
N/A
Enhanced End Node 232
Listening Sleeping Slave
Yes
T6 PRO Z-WAVE® THERMOSTAT
1 - Schedule Type
0 = Occupancy; 1 = Every day the same; 2 = 5-2 Schedule; 3 = 5-1-1 Schedule; 4 = Every day individualSize: 1 byte
Default: 2
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Occupancy |
| 1 | 1 | Every day the same |
| 2 | 2 | 5-2 Schedule |
| 3 | 3 | 5-1-1 Schedule |
| 4 | 4 | Every day individual |
2 - Temp Scale
0 = Fahrenheit; 1 = CelsiusSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Fahrenheit |
| 1 | 1 | Celsius |
3 - Outdoor Temp
0 = No; 1 = WiredSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No |
| 1 | 1 | Wired |
4 - Equipment Type
0 = None; 1 = Standard Gas; 2 = High Efficiency Gas; 3 = Oil; 4 = Electric; 5 = Fan Coil, 6 = Air to Air Heat pump; 7 = Geothermal Heat Pump; 8 = Hot Water; 9 = SteamSize: 1 byte
Default: 2
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | None |
| 1 | 1 | Standard Gas |
| 2 | 2 | High Efficiency Gas |
| 3 | 3 | Oil |
| 4 | 4 | Electric |
| 5 | 5 | Fan Coil |
| 6 | 6 | Air to Air Heat pump |
| 7 | 7 | Geothermal Heat Pump |
| 8 | 8 | Hot Water |
| 9 | 9 | Steam |
5 - Reversing Valve
0 = O/B on Cool; 1 = O/B on HeatSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | O/B on Cool |
| 1 | 1 | O/B on Heat |
6 - Cool Stages
0, 1, 2Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
| 1 | 1 | 1 |
| 2 | 2 | 2 |
7 - Heat Stages; AUX/E stages
0, 1, 2Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
| 1 | 1 | 1 |
| 2 | 2 | 2 |
8 - Aux/E Control
0 = Both Aux/E; 1 = Either Aux/ESize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Both Aux/E |
| 1 | 1 | Either Aux/E |
9 - Aux Heat Type
0 = Electric; 1 = Gas/OilSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Electric |
| 1 | 1 | Gas/Oil |
10 - EM Heat Type
0 = Electric; 1 = Gas/OilSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Electric |
| 1 | 1 | Gas/Oil |
11 - Fossil Kit Control
0 = Thermostat; 1 = ExternalSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Thermostat |
| 1 | 1 | External |
12 - Auto Changeover
0 = Off; 1 = OnSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 1 | On |
13 - Auto Differential
0 to 5 deg FSize: 1 byte
Default: 3
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | deg F |
14 - High Cool Stage Finish
0 = No; 1 = YesSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No |
| 1 | 1 | Yes |
15 - High Heat Stage Finish
0 = No; 1 = YesSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No |
| 1 | 1 | Yes |
16 - Aux Heat Droop
0 = Comfort; 2 to 15 deg F from setpointSize: 1 byte
Default: 0
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Comfort |
| 2 | 15 | deg F from setpoint |
17 - Up Stage Timer Aux Heat
0 = Off; 1 = 30 minutes; 2 = 45; 3 = 60; 4 = 75; 5 = 90 minutes; 6 = 2 hours; 7 = 3; 8 = 4; 9 = 5; 10 = 6; 11 = 8; 12 = 10; 13 = 12; 14 = 14; 15 = 16 hoursSize: 1 byte
Default: 0
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 1 | 30 minutes |
| 2 | 2 | 45 minutes |
| 3 | 3 | 60 minutes |
| 4 | 4 | 75 minutes |
| 5 | 5 | 90 minutes |
| 6 | 6 | 2 hours |
| 7 | 7 | 3 hours |
| 8 | 8 | 4 hours |
| 9 | 9 | 5 hours |
| 10 | 10 | 6 hours |
| 11 | 11 | 8 hours |
| 12 | 12 | 10 hours |
| 13 | 13 | 12 hours |
| 14 | 14 | 14 hours |
| 15 | 15 | 16 hours |
18 - Balance Point (Compressor Lockout)
0 = Off; 5 to 60 degrees F (in 5 degrees increments)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 5 | 60 | degrees F (in 5 degrees increments) |
19 - Aux Heat Lock Out (Aux Heat Outdoor Lockout)
0 = Off; 5 to 65 degrees F (in 5 degrees increments)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 65
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 5 | 65 | degrees F (in 5 degrees increments) |
20 - Cool 1 CPH (Cooling cycle rate stage 1)
1 to 6 CPHSize: 1 byte
Default: 3
Minimum: 1
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | CPH |
21 - Cool 2 CPH (Cooling cycle rate stage 2)
1 to 6 CPHSize: 1 byte
Default: 3
Minimum: 1
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | CPH |
22 - Heat 1 CPH (Heating cycle rate stage 1)
1 to 12 CPHSize: 1 byte
Default: 3
Minimum: 1
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 12 | CPH |
23 - Heat 2 CPH (Heating cycle rate stage 2)
1 to 12 CPHSize: 1 byte
Default: 3
Minimum: 1
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 12 | CPH |
24 - Aux Heat CPH (Heating cycle rate Auxiliary Heat)
1 to 12 CPHSize: 1 byte
Default: 9
Minimum: 1
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 12 | CPH |
25 - EM Heat CPH (Heating cycle rate Emergency Heat)
1 to 12 CPHSize: 1 byte
Default: 9
Minimum: 1
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 12 | CPH |
26 - Compressor Protection
0 = Off; 1 to 5 minutesSize: 1 byte
Default: 5
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 5 | minutes |
27 - Adaptive Recovery
0 = Off; 1 = OnSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 1 | On |
28 - Min Cool Temperature
50 to 99 degrees FSize: 1 byte
Default: 50
Minimum: 50
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 50 | 99 | degrees F |
29 - Max Heat Temperature
40 to 90 degrees FSize: 1 byte
Default: 90
Minimum: 40
Maximum: 90
Possible values
| From | To | Desription |
|---|---|---|
| 40 | 90 | degrees F |
30 - Air Filters
0, 1 or 2 FiltersSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | filters |
31 - Air Filter 1 Reminder
0 = Off; 1 = 10 Run Time Days; 2 = 20; 3 = 30; 4 = 45; 5 = 60; 6 = 90; 7 = 120; 8 = 150 Run Time Days; 9 = 30 Days; 10 = 45; 11 = 60; 12 = 75 Days; 13 = 3 Months; 14 = 4; 15 = 5; 16 = 6; 17 = 9; 18 = 12; 19 = 15 MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 19
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 1 | 10 Run Time Days |
| 2 | 2 | 20 Run Time Days |
| 3 | 3 | 30 Run Time Days |
| 4 | 4 | 45 Run Time Days |
| 5 | 5 | 60 Run Time Days |
| 6 | 6 | 90 Run Time Days |
| 7 | 7 | 120 Run Time Days |
| 8 | 8 | 150 Run Time Days |
| 9 | 9 | 30 Days |
| 10 | 10 | 45 Days |
| 11 | 11 | 60 Days |
| 12 | 12 | 75 Days |
| 13 | 13 | 3 Months |
| 14 | 14 | 4 Months |
| 15 | 15 | 5 Months |
| 16 | 16 | 6 Months |
| 17 | 17 | 9 Months |
| 18 | 18 | 12 Months |
| 19 | 19 | 15 Months |
32 - Air Filter 2 Reminder
0 = Off; 1 = 10 Run Time Days; 2 = 20; 3 = 30; 4 = 45; 5 = 60; 6 = 90; 7 = 120; 8 = 150 Run Time Days; 9 = 30 Days; 10 = 45; 11 = 60; 12 = 75 Days; 13 = 3 Months; 14 = 4; 15 = 5; 16 = 6; 17 = 9; 18 = 12; 19 = 15 MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 19
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 1 | 10 Run Time Days |
| 2 | 2 | 20 Run Time Days |
| 3 | 3 | 30 Run Time Days |
| 4 | 4 | 45 Run Time Days |
| 5 | 5 | 60 Run Time Days |
| 6 | 6 | 90 Run Time Days |
| 7 | 7 | 120 Run Time Days |
| 8 | 8 | 150 Run Time Days |
| 9 | 9 | 30 Days |
| 10 | 10 | 45 Days |
| 11 | 11 | 60 Days |
| 12 | 12 | 75 Days |
| 13 | 13 | 3 Months |
| 14 | 14 | 4 Months |
| 15 | 15 | 5 Months |
| 16 | 16 | 6 Months |
| 17 | 17 | 9 Months |
| 18 | 18 | 12 Months |
| 19 | 19 | 15 Months |
33 - Hum Pad Reminder
0 = Off; 1 = 6 Calendar Months; 2 = 12 Calendar MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 1 | 6 Calendar Months |
| 2 | 2 | 12 Calendar Months |
34 - Dehum Filter Reminder
0 = Off; 1 to 12 Calendar MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 12 | Calendar Months |
35 - Vent Filter Reminder
0 = Off; 3, 6, 9, 12 MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 3 | 3 | Months |
| 6 | 6 | Months |
| 9 | 9 | Months |
| 12 | 12 | Months |
36 - UV Devices
0, 1 or 2 UV devicesSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | UV Devices |
37 - UV Bulb 1 Reminder
0 = Off; 6, 12, 24 MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 24
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 6 | 6 | Months |
| 12 | 12 | Months |
| 24 | 24 | Months |
38 - UV Bulb 2 Reminder
0 = Off; 6, 12, 24 MonthsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 24
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 6 | 6 | Months |
| 12 | 12 | Months |
| 24 | 24 | Months |
39 - Idle Brightness
0 = Off; 1 to 5 Brightness levelSize: 1 byte
Default: 0
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 5 | Brightness level |
40 - Clock Format
0 = 12 hour; 1 = 24 hourSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 12 hour |
| 1 | 1 | 24 hour |
41 - Daylight Saving
0 = Off; 1 = OnSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 1 | On |
42 - Temp Offset
0 = Off; -3 to 3 degrees F (in 1 degree increments)Size: 1 byte
Default: 0
Minimum: 253
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 3 | 1 to 3 degrees F (in 1 degree increments) |
| 253 | 255 | -3 to -1 degrees F (in 1 degree increments) |
43 - Humidity Offset
0 = Off; -12 to 12 percent (in 1 percent increments)Size: 1 byte
Default: 0
Minimum: 244
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off (0) |
| 1 | 12 | 1 to 12 percent F (in 1 percent increments) |
| 244 | 255 | -12 to -1 percent F (in 1 percent increments) |
44 - Z-Wave Temperature resolution
0 = Advanced; 1 = Standard; 2, 3, 4, 5Size: 1 byte
Default: 1
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Advanced |
| 1 | 1 | Standard |
| 2 | 2 | 2 |
| 3 | 3 | 3 |
| 4 | 4 | 4 |
| 5 | 5 | 5 |
45 - Z-Wave Humidity resolution
1% to 5%Size: 1 byte
Default: 1
Minimum: 1
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 5 | percent |
INCLUSION 1. Initiate inclusion (pairing) in the app (or web interface). 2. click the Z-Wave® button 3 times as quickly as possible. 3. The LED indicator will start flashing blue to confirm inclusion mode and turn green for 1 second once inclusion is completed.
1. Bring the Outdoor Plug within direct range of your Z-Wave® gateway (hub). 2. Put the Z-Wave® hub into exclusion mode (not sure how to do that? [email protected]). 3. Press and release the Z-Wave® button 3 times quickly. 4. Your hub will confirm exclusion and the Outdoor Plug will disappear from your controller''s device list.
N/A
When your network’s primary controller is missing or otherwise inoperable, you may need to reset the device to factory settings manually. In order to complete the process, make sure the plug is powered, then click the Z-Wave® button twice and hold it the third time for 10 seconds. The LED indicator will flash green 3 times to confirm a successful reset.
If you’re using an S2 hub, it will ask you to enter the DSK PIN or scan the QR code printed on the side of the plug’s outlet to complete SmartStart inclusion.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management |
|
| Sensor type |
|---|
| Air Temperature |
| Humidity |
