JascoPro
A19 LED Bulb
76609/ZWT7106
Multilevel Switch DT
HW: 01 FW: 08.11:02.01
ZGM230SA
7.18.2
0x0063 (99)
0x4C42 (19522)
0x3037 (12343)
ZC14-24110479
2024-11-01 12:14:52
N/A
Enhanced End Node 232
Always On End Node

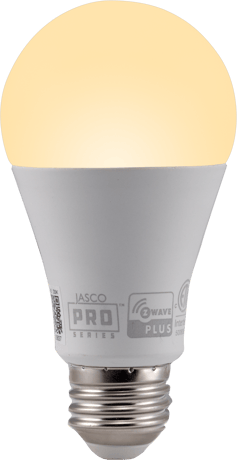

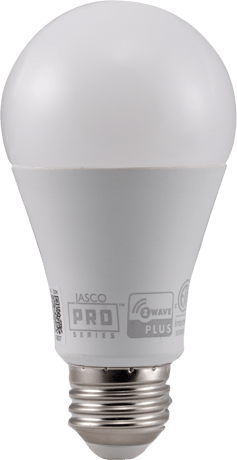

JascoPro Z-Wave Plus® A19 60W Equivalent LED Bulb, 2700K, 800S
1 - Dim Level
Dim level when light bulb is turned ONSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
6 - Enable/Disable Ramping when power is restored to bulb
Enable/Disable Ramping when power is restored to bulb. 0 (default): do not ramp, turn instantly to appropriate level when power is restored. 1: perform dimming ramping behavior to appropriate level when power is restoredSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
To change to classic inclusion mode, turn bulb OFF, then ON three times. The bulb rapidly flashes four times to indicate classic mode.
Once the controller is ready to remove your device, turn bulb OFF, then ON three times. The smart bulb flashes twice when removed from the network.
Turn the switch off, pause one second, then turn back ON. Repeat three times (four times total). The smart bulb flashes twice when reset.
Under the ''Z-Wave SmartStart Inclusion'' subheading under the ''Adding Your Device To a Z-Wave Network'' section
| Type | Value(s) |
|---|
