NICE SpA
On/Off Control2
NICE On/Off-Control2
Binary Switch DT
HW: 05 FW: 08.00
EFR32ZG23B
7.22.2
0x010F (271)
0x0205 (517)
0x1000 (4096)
ZC14-24110481
2024-11-20 08:47:53
N/A
Enhanced End Node 232
Always On End Node

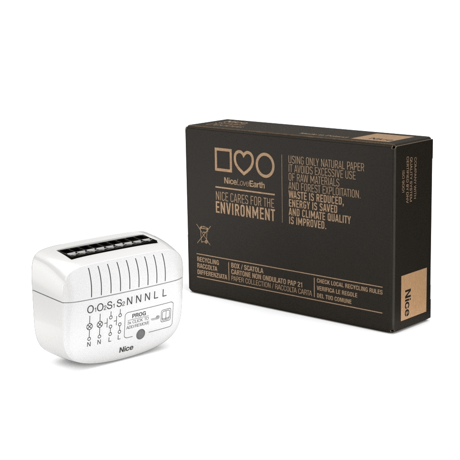

On/Off-Control 2 is designed to be installed in standard wall switch boxes or anywhere else where it's necessary to control electric devices.
1 - Restore state after power failure
This parameter determines if the device will return to the state prior to the power failure after power is restored.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The device doesn't save the state prior to the power failure and returns to the „off" position. |
| 1 | 1 | The device restores its state prior to the power failure. |
20 - Switch type
This parameter defines how the device clasifies the switches connected to S1 and S2 terminals.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | momentary switch |
| 1 | 1 | toggle switch (contact closed - ON, contact opened - OFF) |
| 2 | 2 | toggle switch (the output changes state whenever the switch changes state) |
24 - Buttons orientation
This parameter enables changing inputs orientation without the need of changing electrical connections.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | normal orientation |
| 1 | 1 | inverted orientation |
40 - First button - scenes sent
This parameter determines which actions result in sending scene IDs assigned to them.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 15 |
| 1 | 1 | Key pressed 1 time |
| 2 | 2 | Key pressed 2 times |
| 4 | 4 | Key pressed 3 times |
| 8 | 8 | Key Hold Down and Key Released |
41 - Second button - scenes sent
This parameter determines which actions result in sending scene IDs assigned to them.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 15 |
| 1 | 1 | Key pressed 1 time |
| 2 | 2 | Key pressed 2 times |
| 4 | 4 | Key pressed 3 times |
| 8 | 8 | Key Hold Down and Key Released |
154 - First channel - auto off
This parameter allows to set the auto off time for the first channel. For the value 0 the functionality is disabled.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 3600
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | auto off disabled |
| 1 | 3600 | auto off time |
155 - Second channel - auto off
This parameter allows to set the auto off time for the second channel. For the value 0 the functionality is disabled.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 3600
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | auto off disabled |
| 1 | 3600 | auto off time |
200 - Voltage measurement
This parameter allows to set the value by which the mains voltage must change for the device to send the voltage measurement report. If the voltage level is restored below the notification tripping threshold, after ten minutes the device sends a notification cancellation to the hub.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Functionality disabled |
| 3 | 10 | Threshold value for voltage reports |
201 - Voltage value for notification
This parameter allows to set the value that the mains voltage must exceed for the device to send the voltage notification report. For the value 0 the functionality is disabled.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 260
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | functionality disabled |
| 100 | 260 | value for voltage notifications |
202 - Outputs mode
This parameter allows you to connect both channels and control them simultaneously (only for local control). When you select the connected output mode, both channels work with settings of the first channel (master).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Outputs independent |
| 1 | 1 | Outputs connected |
Adding (Inclusion) - The Z-Wave device learning mode allows to add the device to the existing Z-Wave network. 6.1 - To add the device to the Z-Wave network manually: 1. Place On/Off-Control 2 within the direct range of your Z-Wave controller. 2. Identify the S1 or S2 switch or the PROG button. 3. Set the main controller in the (security/non-security) add mode (see the controller’s manual). 4. Press quickly three times one of the S1 or S2 switches or the PROG button. 5. Wait for the adding process to end. 6. Successful adding is confirmed by the Z-Wave controller’s message and the green LED diode when adding the device to the non-secure, S0, S2 Unauthenticated mode or magenta LED diode when adding the device to the S2 Authenticated mode.
7.1 - To remove the device from the Z-Wave network: 1. Place On/Off-Control 2 within the direct range of your Z-Wave controller. 2. Identify S1 or S2 switch or the PROG button. 3. Set the main controller in the remove mode (see the controller’s manual). 4. Quickly, three times press S1 or S2 switch or the PROG button. 5. Wait for the removing process to end. 6. Successful removing is confirmed by the Z-Wave controller’s message and the red LED diode.
8.2 - Resetting On/Off-Control 2 1. Switch off the mains voltage (disable the fuse). 2. Remove On/Off-Control 2 from the wall switch box. 3. Switch on the mains voltage. 4. Press and hold the PROG-button to enter the menu. 5. Wait for the visual LED indicator to glow yellow. 6. Quickly release and click the PROG-button again. 7. After a few seconds the device is restarted, which is signalled with the red LED indicator color.
Scan the DSK QR code or input the underlined 5-digit PIN code (label on the side of the box and on the device).
| Group | Type |
|---|---|
| Power Management |
|
| System | HW status: System hardware failure (manufacturer proprietary failure code provided) |
