Put the Z-Wave™ Interface Controller into “inclusion” mode, and follow its instruction to add the sensor to your controller. To get in the “inclusion” mode, the distance between sensor and controller is suggested to be in one meter. Press the Learn button of the sensor once will enter the inclusion mode which implements inclusion with a NIF and NWI. During the inclusion mode ,the red LED will blink once every second. The red LED will be solid on for 1 second after successful inclusion, and it also send the indicator report.

Set up the Z-Wave™ Interface Controller into “exclusion” mode, and follow its instruction to delete the sensor from your controller. Press the Learn button of the sensor once for being excluded, the red LED will flash 5 times after successful exclusion.

Either Cover / Tamper is switched on for 1 second, it will send “Wake-Up Notification for receiving all command classes or go to sleep mode after 10 seconds without receiving any command.

The sensor can be restored back to the factory default settings. Hold the Learn button for 5 seconds until the red LED is solid, and then release the Learn button to send the “Device Reset Locally Notification” command. The red LED will go off after the reset procedure is completed. Please use this procedure only when the network’s primary controller is missing or otherwise inoperable.

Tamper/Cover switch Alarm / Restore

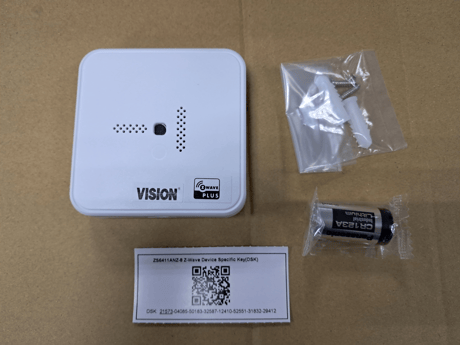

The DSK card is placed inside the box. Scan the DSK label to access the SmartStart if gateway ''s UI supports SmartStart.
