First Alert
SMCO410
SMCO410
Notification Sensor DT
HW: 03 FW: 01.00:00.00
EFR32ZG23A
7.21.3
0x041B (1051)
0x0001 (1)
0x0410 (1040)
ZC14-24120487
2024-12-05 14:04:58
N/A
Enhanced End Node 232
Reporting Sleeping End Node
Yes

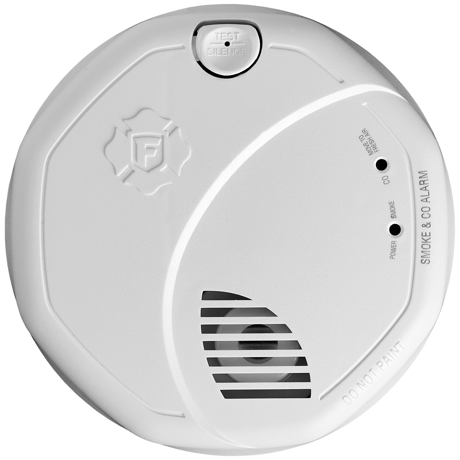

First Alert SMCO410 Smoke and CO Alarm with Z-wave and 10-year sealed battery
1 - SuperVision Report Timeout
SMCO410 will send the message over SuperVision Command Class, and it will wait for the SuperVision report from the Controller for the SuperVision report timeout time.Size: 2 bytes
Default: 1500
Minimum: 500
Maximum: 5000
Possible values
| From | To | Desription |
|---|---|---|
| 500 | 1500 | milliseconds |
2 - SuperVision Retry Count
If the SuperVision report is not received within the SuperVision report timeout time, the SMCO410 will retry sending the message again. Upon exceeding the max retry, the SMCO410 device will send the next message available in the queue.Size: 2 bytes
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | retry count |
3 - SuperVision Wait Time
Before retrying the message, SMCO410 will wait for the SuperVision wait time. Actual wait time is calculated using below formula, Wait time = SuperVision wait time base-value + random-value + (attempt-count x 5 seconds)• The random value shall be a time between 100 and 1100 millisecondsSize: 2 bytes
Default: 5
Minimum: 1
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 60 | seconds |
Press and hold the button until 2 consecutive chirps and green LED flashes are heard and seen
Press and hold the button until 2 consecutive chirps and green LED flashes are heard and seen
When You Test the Alarm A “chirp” and then Horn: 3 beeps, pause, 3 beeps; Power/Smoke LED: Flashes Red in sync with horn; CO LED: Off; and then Horn: 4 beeps, pause, 4 beeps; Power/Smoke LED: Off; CO LED: Flashes Red in sync with horn The Zwave Radio will then Wake Up.
Press and hold the button until 3 consecutive chirps are heard. This may take 20+ seconds.
DSK LOCATION ON THE PRODUCT Device Specific Key (DSK) to be available at the time an S2 device is added to a Z-Wave network. The QR code and the 5-digit DSK PIN can be found on the product nameplate which is located on the back of the product. The Full DSK string can be found on the label on the side of product and on the product insert, available inside the product packaging. For more information on Z-Wave specifications, visit www.firstalert.com/zwaveinfo.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Smoke Alarm |
|
| CO Alarm |
|
| System |
|
