ULTRALOQ

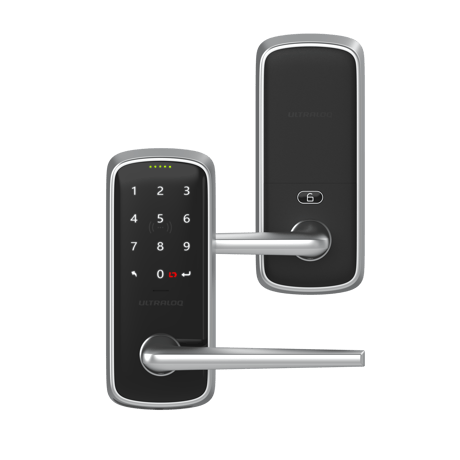

ULTRALOQ Latch7 Z-Wave Smart Lock
LATCH7-ZWAVE
Lock DT
HW: 01 FW: 01.00:03.00
EFR32ZG28A
7.23.0
0x0452 (1106)
0x0004 (4)
0x0003 (3)
ZC14-25050521
2025-05-19 08:30:53
N/A
Enhanced End Node 232
Listening Sleeping End Node
Yes
Control your Ultraloq Smart Lock remotely with a smartphone app via Z-Wave: lock/unlock, share access, and view entry logs. It offers 8-in-1 keyless entry, including an anti-peep keypad. It is compatible with Z-Wave Plus, Home Assistant, Apple Watch, and voice control via Alexa/Google Assistant. It auto-locks upon door closing and unlocks when you approach. Built to exceed security standards, it's weatherproof and easy to DIY install. Ultraloq backs it with warranties and is trusted by over 1 million users.
1. Initiate the process to add the lock to your system at your smart home controller. Refer to your smart home system instructions for more information. 2. If prompted by your smart home system to add the lock. Hold the "Enter" button for 3 seconds, hear 2 beeps and a flashing blue light, internal LED Flashing Green light. The lock now enters setup mode. 3. Follow the prompts, scan the QR code located on the better cover, or enter the 5-digit PIN code. Note: Please complete the preparation within 30 seconds. If you miss it, please press the ULTRALOQ button again to enter.
4.3 How to remove the product from the Z-Wave network 1. Follow the user guide of the hub to enter exclusion mode. 2. Operate on lock Enter "Exclusion mode": Hold the "ULTRALOQ" button for 3 seconds, hear 2 beeps and flashing blue light, internal LED Flashing Green light. 3. Remove from the hub.
4.4 How to factory reset Please use this procedure only when the network’s primary controller is missing or otherwise inoperable. Please use a Reset Needle to push the Reset Button located inside the battery compartment) for around 10 seconds until you hear one long beep and two short beeps.
4.1 Z-Wave DSK Location 1. You can find the QR code on the battery cover of your door lock. 2. You may also find the DSK in the user manual of each product. Note: Please do not remove or damage them.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
| Home Security | Tampering, invalid code |
