CLIMAX TECHNOLOGY

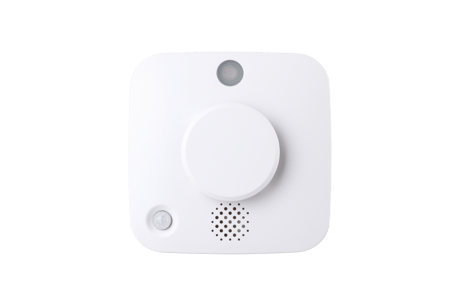

Smoke Detector
SD-32ZW
Notification Sensor DT
HW: 255 FW: 04.07
ZM5202AE-CME3
6.85.02
0x018E (398)
0x0003 (3)
0x0028 (40)
ZC14-25060525
2025-06-11 06:27:38
N/A
Enhanced End Node 232
Listening Sleeping End Node
Yes
The SD-32ZW wireless smoke detector uses multi-criteria sensor technology to detect fast-burning and slow-smoldering fires, and intelligent system to minimize false alarms from cooking smoke.
Step 1 Put the Z-Wave gateway or control panel into Inclusion or Learning mode (please refer to the Z-Wave gateway or control panel manual). Step 2 Within 1.5 seconds, press the Function Button 3 times. The Smoke Detector will emit a 2-tone beep and the LED will turn on for about 0.2 seconds. Refer to the operation manual of the Z-Wave gateway or control panel to complete the learn-in process. <NOTE> If the Detector has already been included (learnt) into another Z-Wave Gateway/Control Panel, or if it is unable to be learnt into the current Z-Wave Gateway/Control Panel, please exclude it first (see Exclusion) before attempting to include it into the current Z-Wave Gateway/Control Panel.
Step 1 Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual). Step 2 Within 1.5 seconds, press the Function button 3 times and the Smoke Detector will be removed from the Z-wave network.
Factory Reset (Only use factory reset when network Control Panel/Gateway is missing or inoperable.) Step 1 Press and hold the Function Button for 20 seconds. Step 2 Release the Button after 3 beeps to factory reset
The DSK information is stored in the QR code format on the device.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Smoke Alarm |
|
| Heat Alarm |
|
| Home Security |
|
| Sensor type |
|---|
| Air Temperature |
