Inovelli

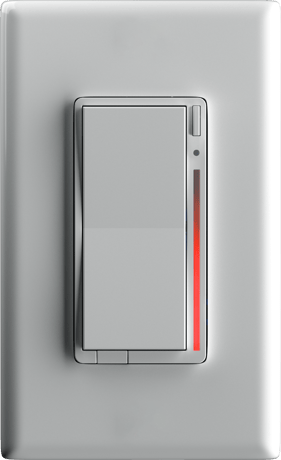

Smart Presence Sensing Dimmer
VZW32-SN
Multilevel Switch DT
HW: 01 FW: 02.03
ZGM230SA
7.23.1
0x031E (798)
0x0017 (23)
0x0001 (1)
ZC14-25060528
2025-07-02 10:35:08
N/A
Enhanced End Node 232
Always On End Node
Introducing the first Z-Wave® Dimmer with presence detection via millimeter-wave (mmWave) technology, Multi-Tap Scene Control and LED Notifications powered by Inovelli.
1 - Diming Speed Up Remote
Interval of dimming: 0-100 in ms(0-10000 ms), 101-160 in seconds(1-59 seconds), 161-254 in minutes (1-93 minutes)Size: 1 byte
Default: 25
Minimum: 0
Maximum: 254
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
2 - Diming Speed Up From Switch
0-254 is the same as P1, when 255 will Keep in sync with P1Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
3 - Ramp Rate On Remote
0-254 is the same as P1, when 255 will Keep in sync with P1Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - Ramp Rate On From Switch
0-254 is the same as P1, when 255 will Keep in sync with P2Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
5 - Dimming Speed Down Remote
0-254 is the same as P1, when 255 will Keep in sync with P1Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
6 - Dimming Speed Down From Switch
0-254 is the same as P1, when 255 will Keep in sync with P2Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
7 - Ramp Rate Off Remote
0-254 is the same as P1, when 255 will Keep in sync with P3Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
8 - Ramp Rate Off From Switch
0-254 is the same as P1, when 255 will Keep in sync with P4Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
9 - Minimum Level
The minimum level that the dimmer allows the bulb to be dimmed toSize: 1 byte
Default: 1
Minimum: 1
Maximum: 54
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
10 - Maximum Level
The maximum level that the dimmer allows the bulb to be dimmed toSize: 1 byte
Default: 99
Minimum: 55
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
11 - Invert Switch
Invert Switch and led stripSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
12 - Auto Off Timer
Auto Turn Off after x secondsSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
13 - Default Level Local
Default dim level for the switch ON by buttonSize: 1 byte
Default: 0
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
14 - Default Level Z-Wave
Default dim level for the switch ON by Z-WaveSize: 1 byte
Default: 0
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
15 - State After Power Restored
State After Power RestoredSize: 1 byte
Default: 100
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
17 - LED Bar Timeout
LED Bar TimeoutSize: 1 byte
Default: 11
Minimum: 0
Maximum: 11
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
18 - Active Power Reports
Active Power report when it change x %Size: 1 byte
Default: 10
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
19 - Meter Report Time
Time period between consecutive power & energy reports being sent x secondsSize: 2 bytes
Default: 3600
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
20 - Energy Report
Energy ReportSize: 2 bytes
Default: 10
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
21 - Power Type
0-NonNeutral, 1-NeutralSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
22 - Switch Type
0-Single, 1-AuxSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
23 - Quick Start Time
Quick Start TimeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
24 - Quick Start Level
Quick Start LevelSize: 1 byte
Default: 99
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
25 - NonNeutral Output
NonNeutral OutputSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
26 - Dimming Edge
0-Leading,1-TrailingSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
32 - Internal Temperature
Internal TemperatureSize: 1 byte
Default: 30
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
33 - Overheat
OverheatSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
50 - Button Delay Time
Button Delay TimeSize: 1 byte
Default: 5
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
52 - Use Smart Bulb
Use Smart BulbSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
53 - Double Tap Up Enable
Double Tap Up EnableSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
54 - Double Tap Down Enable
Double Tap Down EnableSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
55 - Double Tap Up to Level
Double Tap Up to LevelSize: 1 byte
Default: 99
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
56 - Double Tap Down to Level
Double Tap Down to LevelSize: 1 byte
Default: 1
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
58 - Exclusion Behavior
Exclusion BehaviorSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
59 - Association Behavior
Association BehaviorSize: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
64 - LED1 Effect
LED1 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
69 - LED2 Effect
LED2 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
74 - LED3 Effect
LED3 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
79 - LED4 Effect
LED4 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
84 - LED5 Effect
LED5 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
89 - LED6 Effect
LED6 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
94 - LED7 Effect
LED7 EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
95 - LED Strip Color(On)
LED Strip Color(On)Size: 1 byte
Default: 170
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
96 - LED Strip Color(Off)
LED Strip Color(Off)Size: 1 byte
Default: 170
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
97 - LED Strip Intensity(On)
LED Strip Intensity(On)Size: 1 byte
Default: 33
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
98 - LED Strip Intensity(Off)
LED Strip Intensity(Off)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
99 - LED Strip Effect
LED Strip EffectSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
100 - LED Scaling
LED ScalingSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
101 - Detection Zmin
Detection ZminSize: 2 bytes
Default: 65236
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
102 - Detection Zmax
Detection ZmaxSize: 2 bytes
Default: 300
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
103 - Detection Xmin
Detection XminSize: 2 bytes
Default: 64936
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
104 - Detection Xmax
Detection XmaxSize: 2 bytes
Default: 600
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
105 - Detection Ymin
Detection YminSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
106 - Detection Ymax
Detection YmaxSize: 2 bytes
Default: 600
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
107 - mmWave Target Dislay
mmWave Target DislaySize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
108 - mmWave Stay Life
mmWave Stay LifeSize: 4 bytes
Default: 300
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
109 - mmWave Time Range
mmWave Time RangeSize: 4 bytes
Default: 4294967295
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
110 - mmWave Load Control
mmWave Load ControlSize: 1 byte
Default: 1
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
111 - mmWave ControlId
mmWave ControlIdSize: 1 byte
Default: 2
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
112 - mmWave Sensitivity
mmWave SensitivitySize: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
113 - mmWave Trigger Speed
mmWave Trigger SpeedSize: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
114 - mmWave HoldTime
mmWave HoldTimeSize: 4 bytes
Default: 30
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
115 - mmWave FW Version
mmWave FW VersionSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
116 - mmWave Area State
mmWave Area StateSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 16843009
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
118 - Lux Threshold
Lux ThresholdSize: 2 bytes
Default: 20
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
119 - Lux Interval
Lux IntervalSize: 2 bytes
Default: 600
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
120 - Single Tap Handler
Single Tap HandlerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
123 - Aux Switch Scenes
Aux Switch ScenesSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
130 - FM Control
FM ControlSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
131 - FM L Level
FM L LevelSize: 1 byte
Default: 25
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
132 - FM M Level
FM M LevelSize: 1 byte
Default: 50
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
133 - FM H Level
FM H LevelSize: 1 byte
Default: 99
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
134 - FM Color
FM ColorSize: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
158 - OnOff Dimmer Mode
0-Dimmer, 1-OnOffSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
159 - OnlyOneLed Mode
OnlyOneLed ModeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
160 - Firmware progress LED
Firmware progress LEDSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
162 - Clear Notification
Press 2x config clear notificationSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
To include (pair) your switch, start the Z-Wave inclusion process on your hub and rapidly tap the config/favorites button (A) three times. The LED Bar (C) will pulse blue to indicate inclusion mode and flash green if pairing is successful.
If inclusion fails, you can reset the switch by putting your hub in exclusion mode and pressing the config/favorites button (A) three times. The LED Bar (C) will pulse blue and flash green if exclusion is successful, or red if not. Alternatively, hold down the top paddle (B) and the config/favorites button (A) simultaneously for 20 seconds until the LED Bar turns red, then release. After exclusion, you can try pairing again.
To factory reset your device, first, hold the Configuration / Favorites Button (C) followed by the up button (A) for 20 seconds until the LED Bar (D) turns red and let go. The switch should blink red a few times indicating it has been factory reset. You may also use a certified Z-Wave controller to remove the device from your network to factory default. Only use these procedures in the event that the primary controller is missing or otherwise inoperable.
The DSK information required for some inclusion methods can be found either on the product (QR Code located at the bottom front-left of the switch), or on the back of the box at the bottom left (QR Code located at the bottom right). Please keep this in a safe space or write it down for your records.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security |
|
| Sensor type |
|---|
| Illuminance |
