JascoPro Series

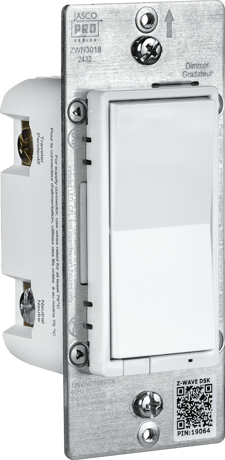

Z-Wave In-Wall Smart Dimmer (Paddle)
76597/ZWN3018
Multilevel Switch DT
HW: 01 FW: 01.00
EFR32ZG23A
7.19.3
0x0063 (99)
0x4944 (18756)
0x3539 (13625)
ZC14-25070535
2025-07-23 10:05:16
N/A
Enhanced End Node 232
Always On End Node
Use the 800LR smart dimmer in smart lighting applications for smooth lighting control and reliable wireless communication.
3 - LED light mode
Set the LED Light Mode.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
4 - Invert Switch
Reverse the default ON/OFF Paddle switch.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
5 - Select 3-Way Type
Configure standard 3-Way or Add-On Switch.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
16 - Switch Mode
Set control mode: 0= Dim mode,1= Switch mode.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
19 - Alternate Exclusion
Alternative way to perform Exclusion.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
30 - Minimum Dim Threshold
Minimum Dim Threshold.Size: 1 byte
Default: 1
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
31 - Maximum Brightness Threshold
Maximum Brightness Threshold.Size: 1 byte
Default: 99
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
32 - Starting Brightness Level
Dimmer will turn ON to this level.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
34 - LED light color
Set the LED Light Color.Size: 1 byte
Default: 5
Minimum: 1
Maximum: 8
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
35 - LED light intensity
Set the LED Light Intensity.Size: 1 byte
Default: 4
Minimum: 1
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
36 - Guide light mode intensity
Set the Guide light Mode Intensity.Size: 1 byte
Default: 4
Minimum: 1
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
84 - Reset Factory Default
Reset Switch to Factory Defaults.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 |
* The device support two methods of inclusion, When using a Z-Wave Plus® certified controller choose Network Wide Inclusion or SmartStart. * TAP the button once times to ADD/INCLUDE the device. * Network Wide Inclusion To A Z-Wave® Network * TAP the button once times to REMOVE/EXCLUDE the device * Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. * When prompted by your primary controller, click the Z-Wave button one times . .
* The device support two methods of inclusion, When using a Z-Wave Plus® certified controller choose Network Wide Inclusion or SmartStart. * TAP the button once times to ADD/INCLUDE the device. * Network Wide Inclusion To A Z-Wave® Network * TAP the button once times to REMOVE/EXCLUDE the device * Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. * When prompted by your primary controller, click the Z-Wave button one times . .
Factory Reset: Remove the switch from power. Press and hold the manual button, plug the switch in and continue holding the manual button for 3 seconds. Note: Please use this procedure only when the network primary controller is missing or otherwise inoperable.
SCAN THE QR CODE / ENTER THE 5-DIGIT DSK, visual arrow pointing to the DSK PIN code on the switch
| Type | Value(s) |
|---|
