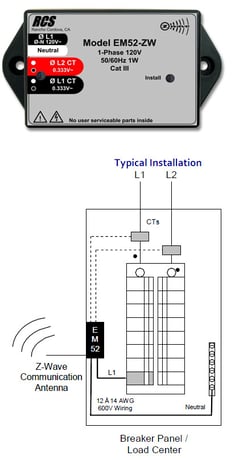

Overview The RCS Energy Meter Series networked power meters are sub-metering devices designed to provide timely and accurate consumption data. These meters can capture kWh/kW energy and demand data as well as virtually all relevant energy parameters for diagnostics and monitoring single-phase circuit installations. Input for 2 CT s can be used to monitor whole house usage (L1 + L2) or 2 single-phase sub-loads. Technical Specifications - Residential Single-phase Configuration – Model EM52 - 2 Single-phase CT inputs for Whole House consumption - Automatically adjusts for CT orientation - Greatly reduces setup time and installation errors - All-in-One design with flexible antenna for maximum RF range and ease of installation - Accuracy: +/- 1% of reading - Frequency: 50/60Hz - Current Transformer Input: (0-0.333v) (0 – 3.3V) - Selectable Current Transformer range (5A-150A) - Built-in burden resistor - Output Power : Isolated 12VDC 200mA - RF Interface: Z-Wave - LED indicators - Agency approval: FCC, ETL
