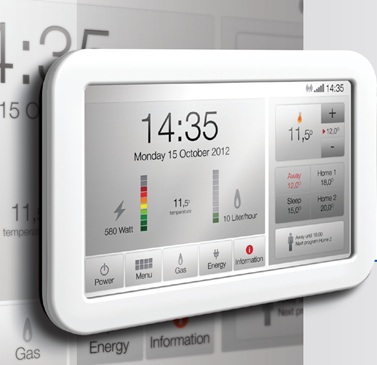

The Prodrive Home Energy Management display and surrounding products provide an ecosystem for energy management and home control. The display can show the energy usage to make people aware of their real-time energy use. The wireless connection allows the user to operate the display remotely using a PC or a mobile phone. By connecting the display to the backend system of the energy company, information like energy cost overview, weather, traffic et cetera can be provided. Even though the ED2.0 display is developed and already in use for Home Energy Management, the hardware platform could easily be utilized for other Z-Wave controller or gateway functionality. Prodrive is able to deliver a fully customized product including: • Display derived solution • Enclosure • Accessories • Packaging • Customer trademark Features • Main processor • Freescale i.MX27 CPU @ 400MHz • DDR-SDRAM memory • 128MiB (upgradable to 256MiB) @ 133MHz • Flash memory • TFT-LCD • 7” diameter • Touchscreen • Resolution 800x480 • RTC with backup battery • Room temperature sensor • 0.5W mono speaker Communication Interfaces • 10/100BASE-T Ethernet • WLAN • USB 2.0 • Z-Wave • OpenTherm Optional Interfaces • WebCam (2Mpixel, 640x480 @ 25fps) • Power Line communication • KNX / EIB • VoIP
