Brand
Vision
Name
Vision PIR Sensor ZP3102IN
Part number
ZP3102IN
Device type
Not Z-Wave Plus
OEM Version
v03
Hardware platform
ZM3102
Z-Wave version
4.54
Manufacturer ID
0x0109 (265)
Product type ID
0x2002 (8194)
Product ID
0x0203 (515)
Certificate number
ZC08-13040016
Certification date
0001-01-01 00:00:00
EAN barcode
N/A
Library type
Routing Slave
Role type
N/A
Description
Features: *Passive Infrared Sensor (PIR) *2~10 meter Motion Range *120 Degree Horizontal Angle Coverage *Temperature Function *Low battery detection *Panasonic CR123A Battery *Tamper Switch *Z-Wave 5.02 SDK *100ft line of sight *LED Status Indicator *Operating temp: -15oC~40oC *Working Voltage: 3V *Dimensions: 84*62*50mm *Z-wave Certification #US ZC08-11040004 / EU ZC08-12100006 *Frequency Available: US/EU/JP/IN/BR Version Available *On Japan Telec Certification Process *Taiwan NCC Approved
Z-Wave Features
Category (1)
Sensors
Z-Wave Chip Series
300
Region (1)

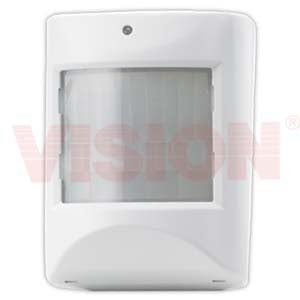

Product Picture as Published
0 / 0
No configuration parameters available.
