Brand
RCS
Name
TZ45 Z-Wave Thermostat
Part number
TZ45
Device type
Not Z-Wave Plus
OEM Version
v0
Hardware platform
ZM3102
Z-Wave version
4.52
Manufacturer ID
0x0010 (16)
Product type ID
0x0001 (1)
Product ID
0x0009 (9)
Certificate number
ZC08-11040006
Certification date
0001-01-01 00:00:00
EAN barcode
N/A
Library type
Routing Slave
Role type
N/A
Description
Z-Wave Thermostat.Separate Heat and Cool Setpoints Up to 3 Stage Heat, 2 Stage Cool Remote control of most functions via Zwave Two part design or New 1 piece design Backlit LCD Wall Display Unit For standard gas/electric or heat pump HVAC systems Replaces existing 4 or more wire thermostats without the need for additional wiring (TZ16/TZ40) Optional Remote Temperature Sensor Power: 24VAC supplied from HVAC system Supports the ZWave thermostat device class
Z-Wave Features
Category (1)
Thermostats
Z-Wave Chip Series
300
Region (1)

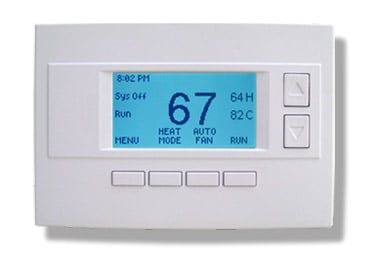

Product Picture as Published
0 / 0
No configuration parameters available.
