TKB Home
Dual Relay Switch Module
TZ04U
Not Z-Wave Plus
v1.0
ZM4101
6.02
0x0118 (280)
0x0001 (1)
0x0003 (3)
ZC08-13060016
0001-01-01 00:00:00
N/A
Enhanced Slave
N/A
Features: - World first two relay Z-wave 400 series module with power meter function in a very slim case. - Adopt Z-Wave protocol to secure the success of wireless two way communication. - Adopt newest Z-wave 400series chip, support multichannel operation and higher data rate (9.6/40/100kbps). - Slim design, easy install. - Resistive load 1500W X 2. - Instant power Wattage and Accumulated power consumption KWh report. - Overload protection. - Z-Wave V6.02 - Very low electricity consumption, meet Europe year 2012 energy-related products requirement directive 2009/125/EC no. 1275/2008. - LVD:EN 60669-2-1:2004+A1:2009+A12:2010, - EN 60669-2-2 :2006 - EN 60669-1:1999+A1:2002+A2:2008+IS1:2009 - R&TTE: EN 301489, EN 300200,

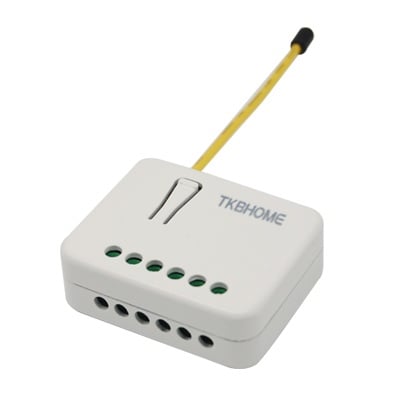

Product Picture as Published
